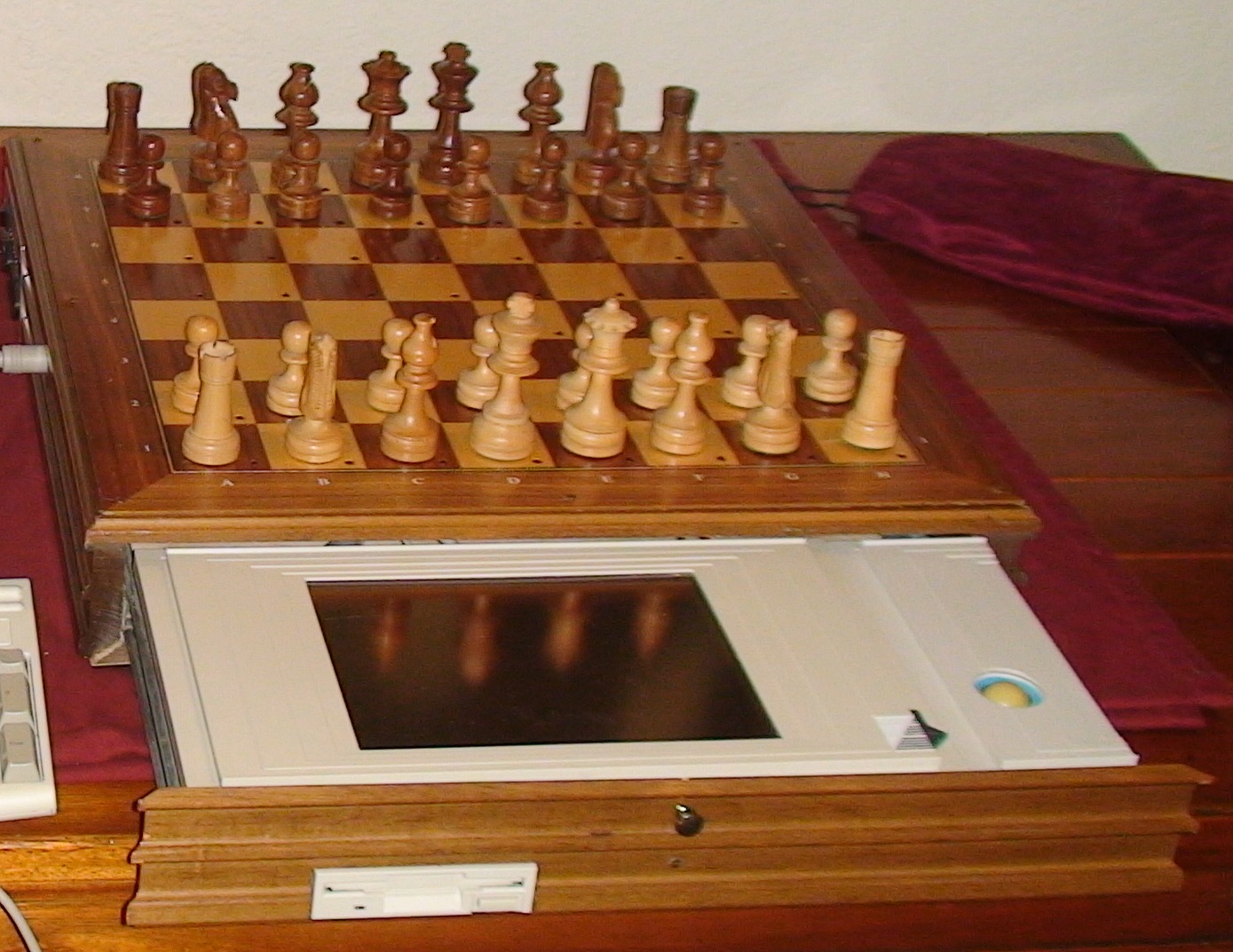

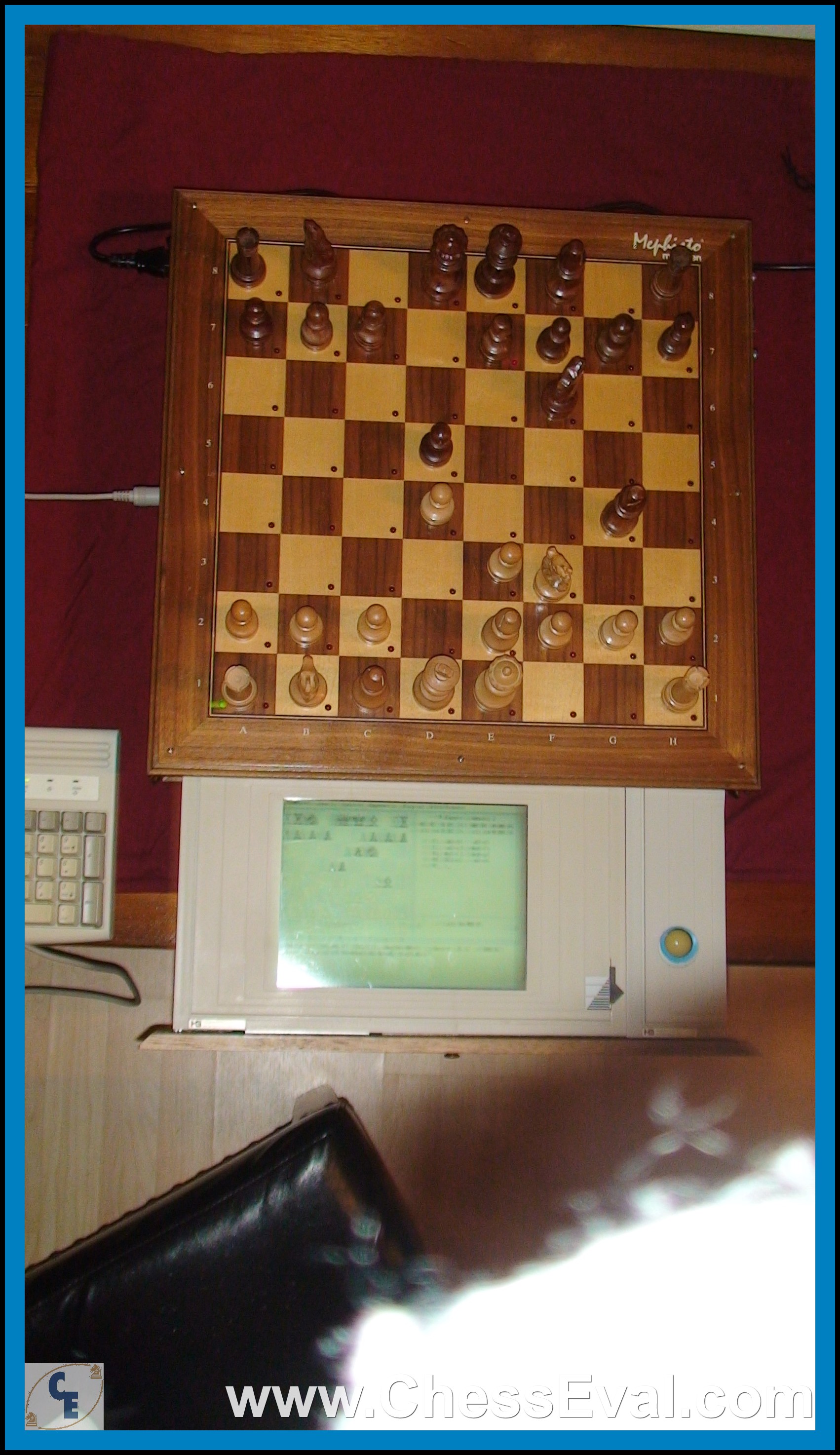

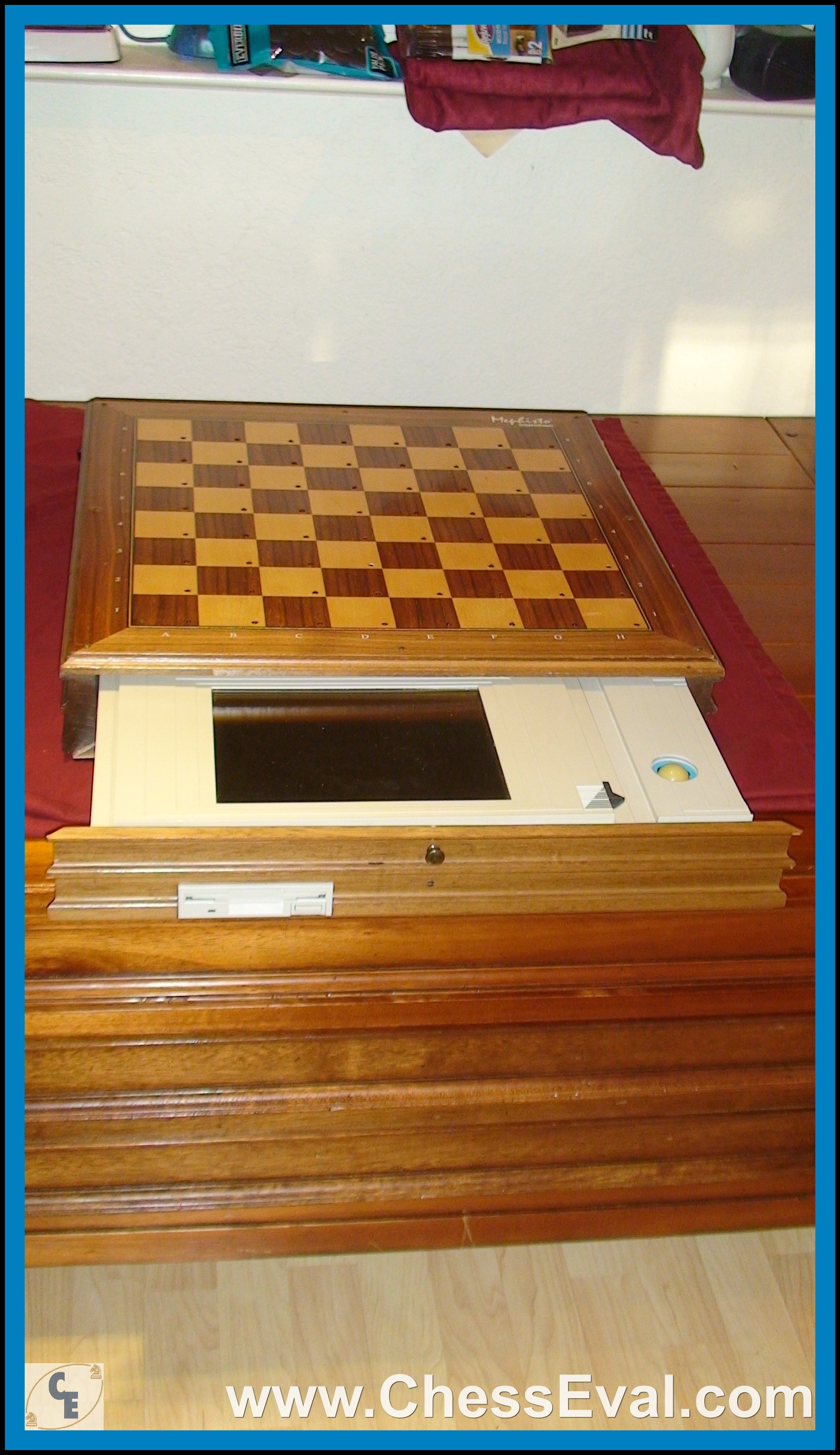

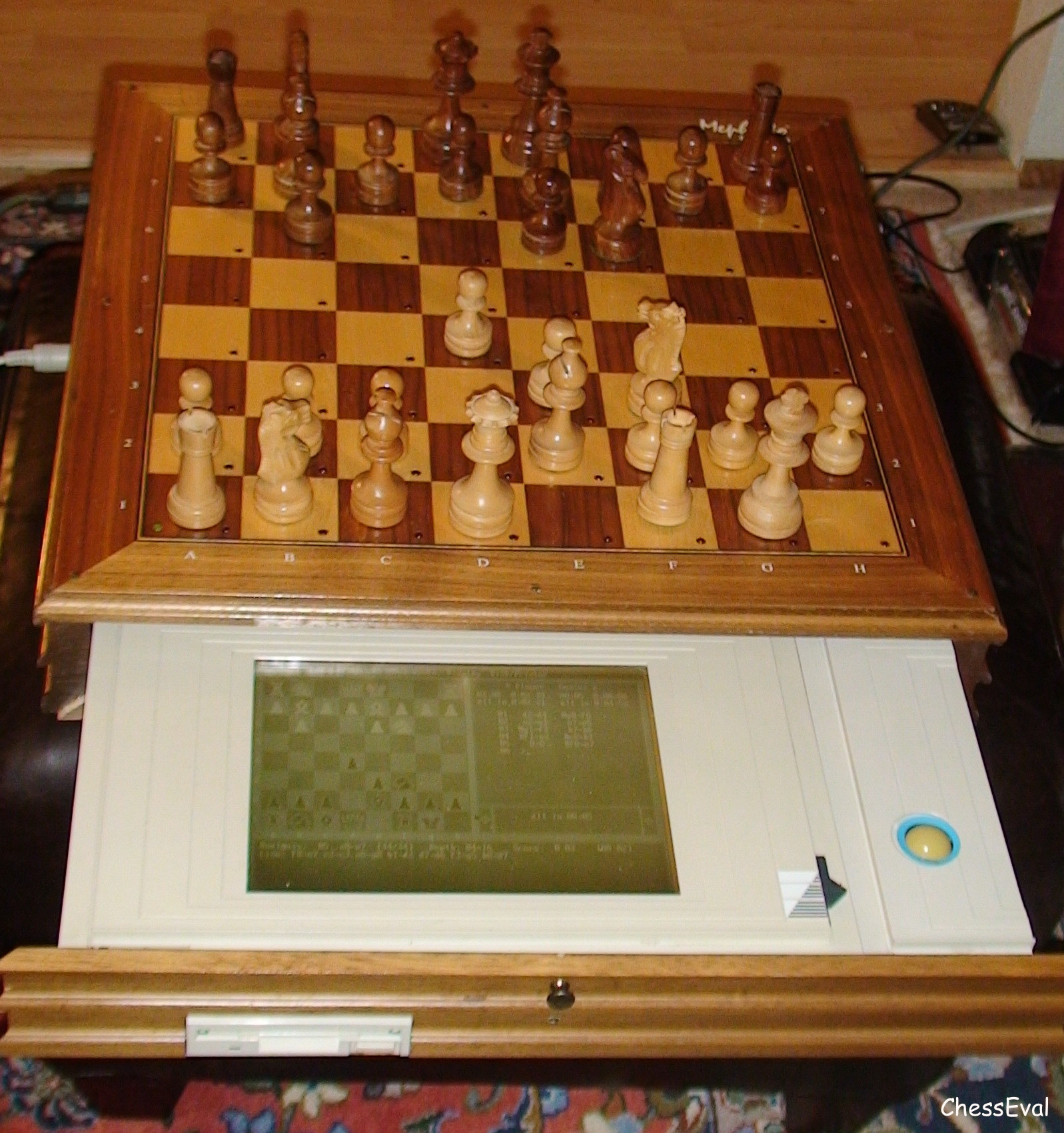

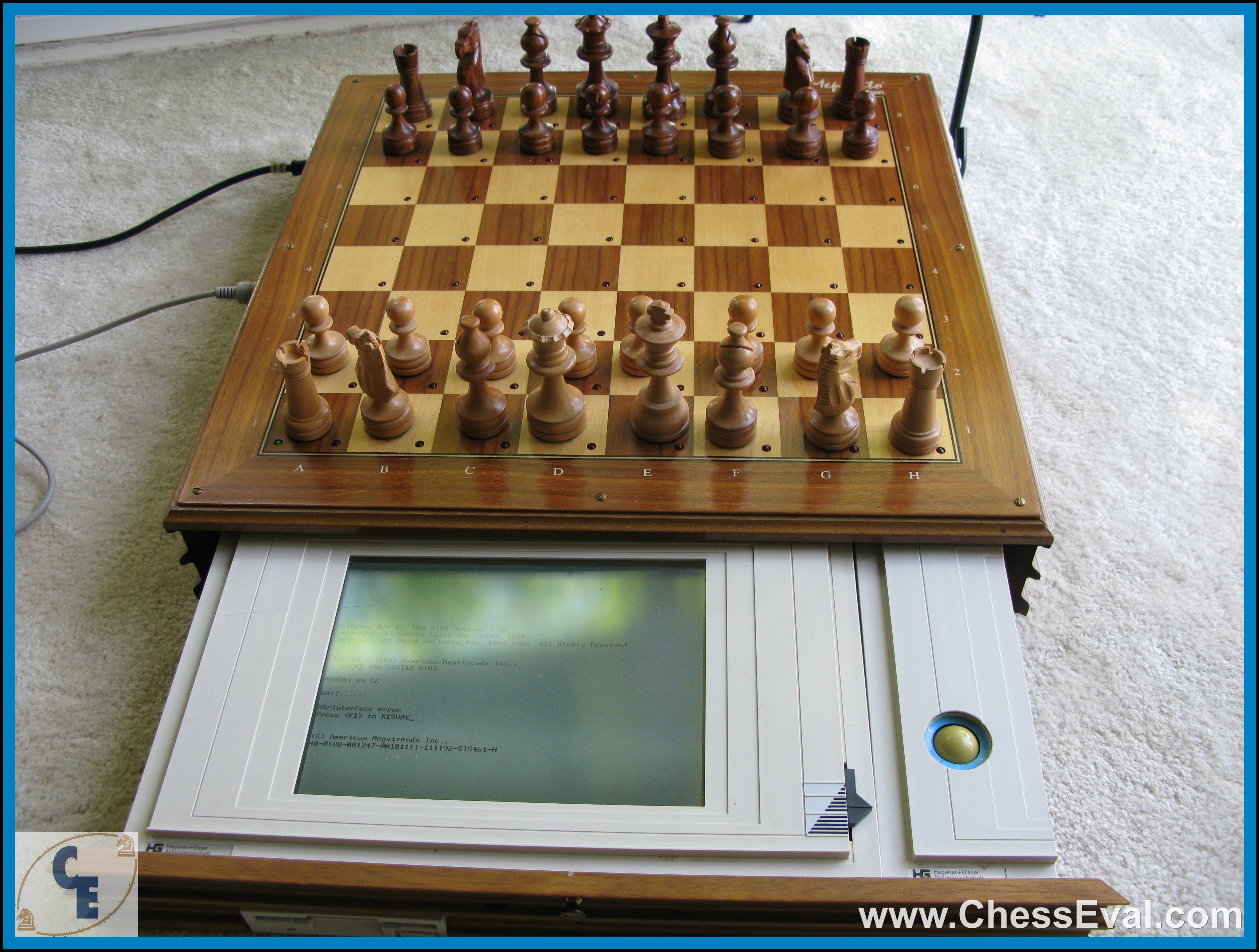

This computer is one of the few Wundermaschine produced by Hegener & Glaser and still with the original processor Intel 80486DX2, 66 MHz, 8 MB of RAM and the Genius 2 program of Richard Lang.
Very few of these computers escaped to the electronic scalpel of their zealous owners dreaming of more MHz power or trying to repair them. Anyway, they were becoming modified computers.
This computer is exceptional: for the best of my knowledge, two or three remain completely un-modified, original in all their parts including the Genius 2 program of Lang.

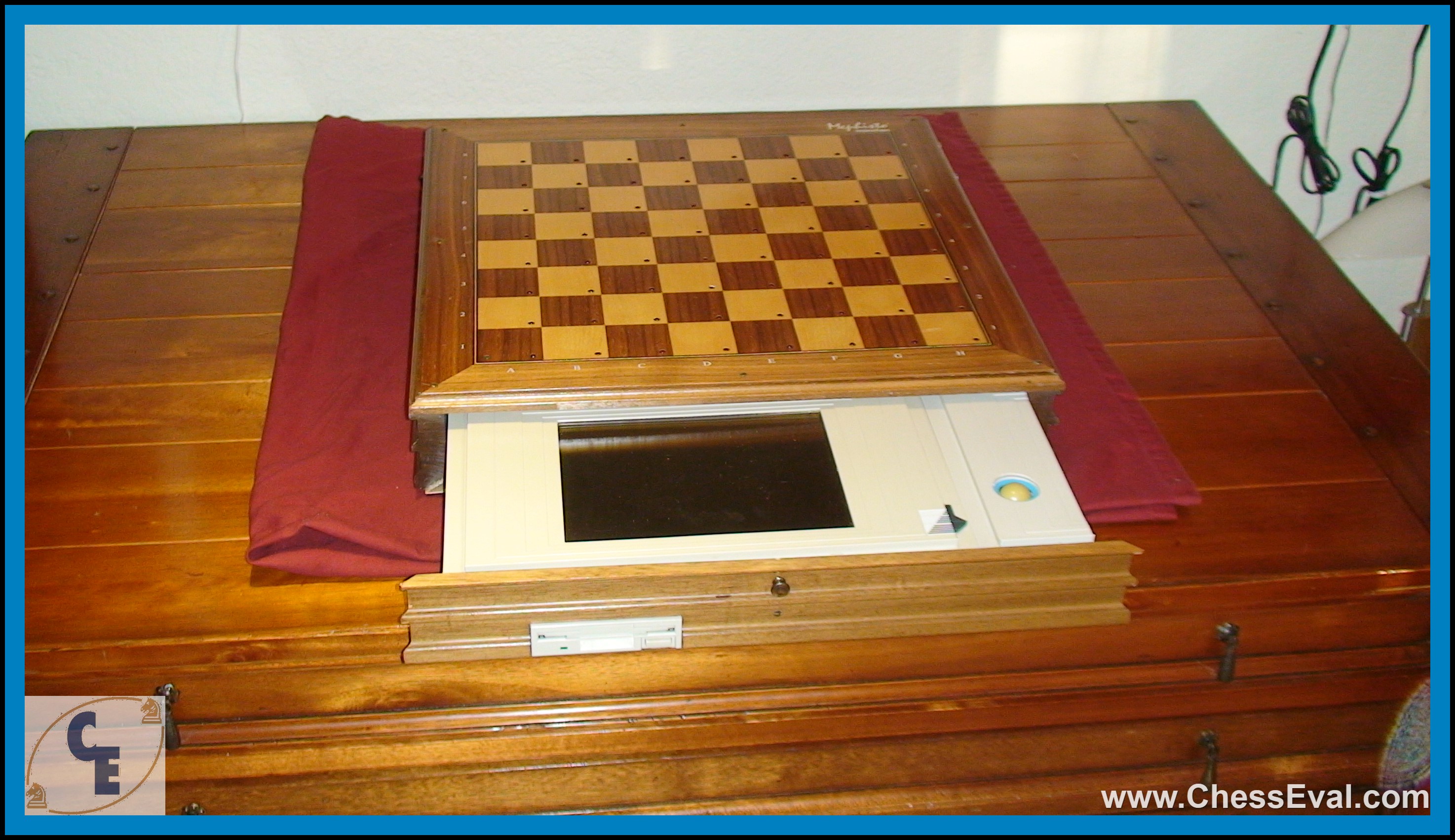

Characteristics of the DH 4000 00503003 Wundermaschine (80486DX2, 66MHz, Genius 2)
Specs:
- original H&G Mephisto Wundermaschine (non modified)

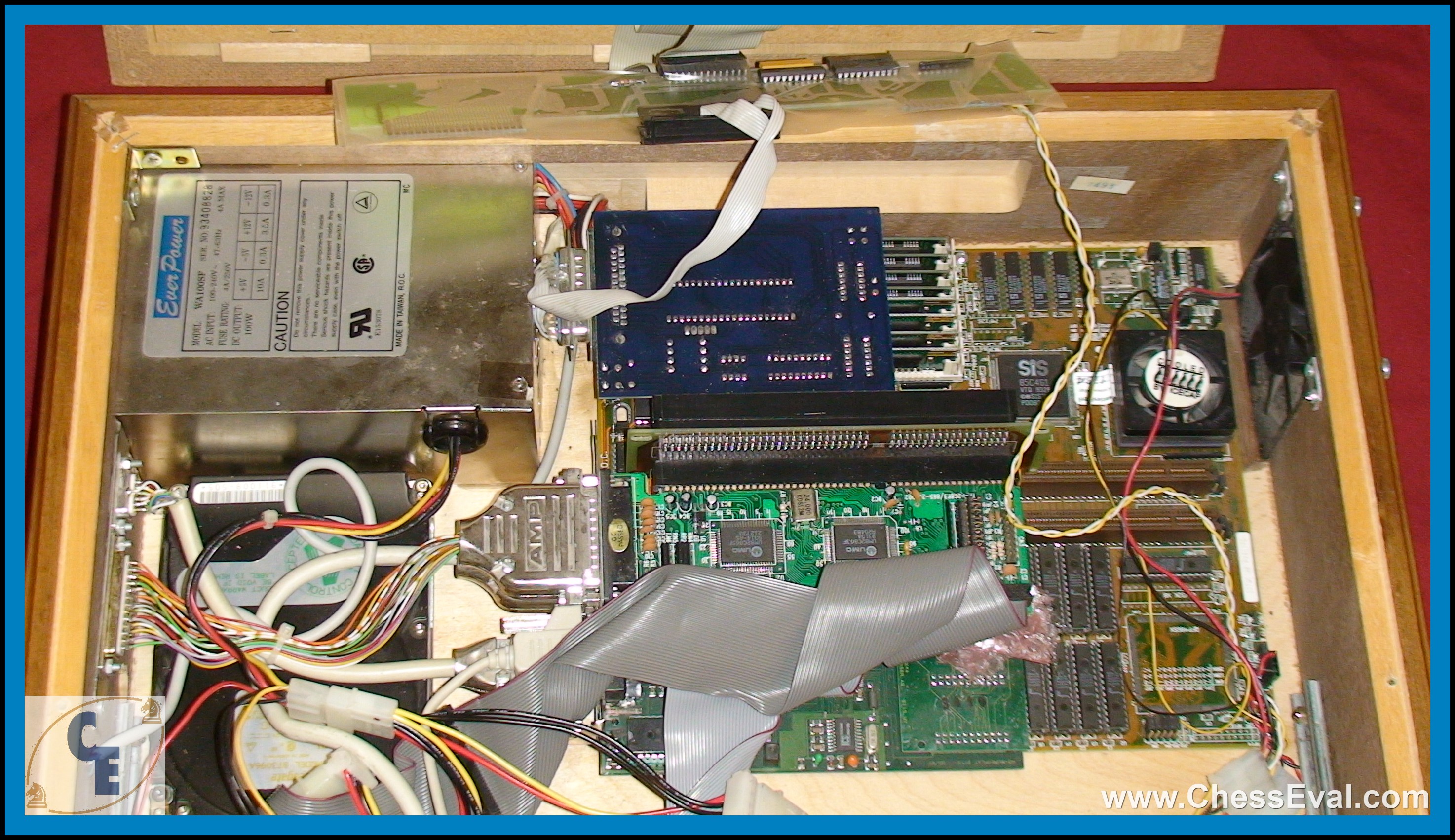

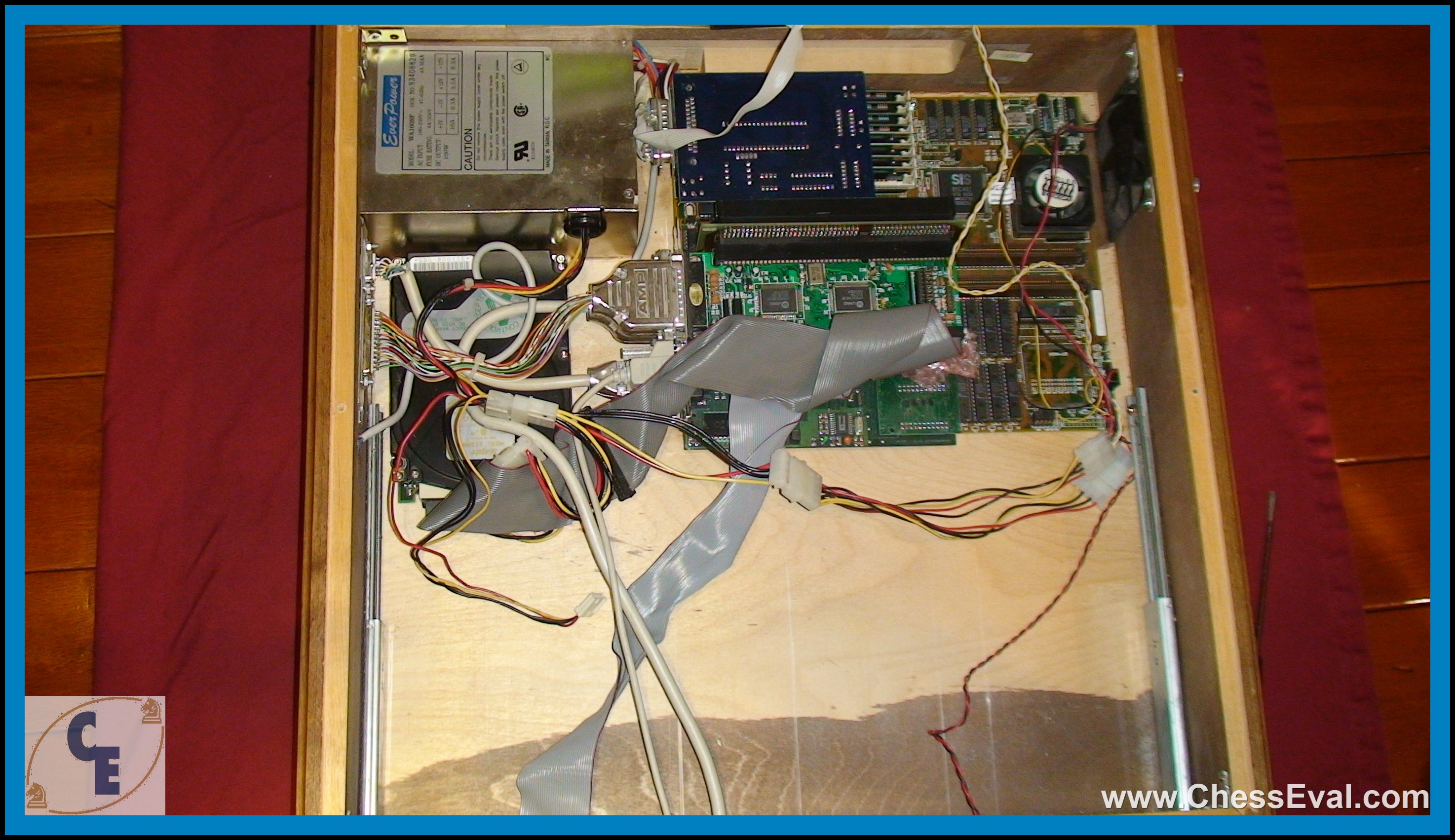

- processor: Intel 80486DX2, 32 bits, 66 MHz
- RAM: 8 MB

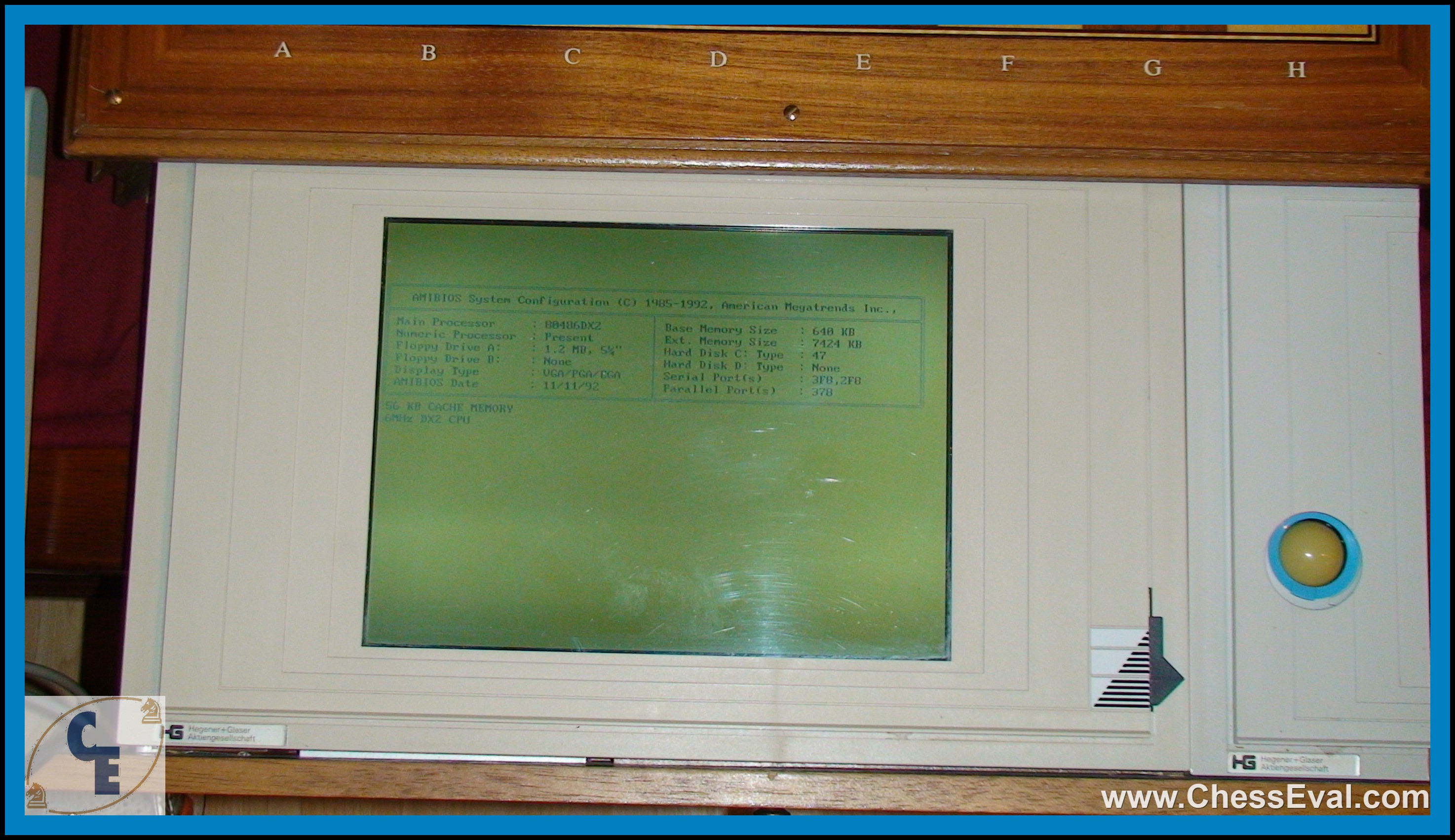

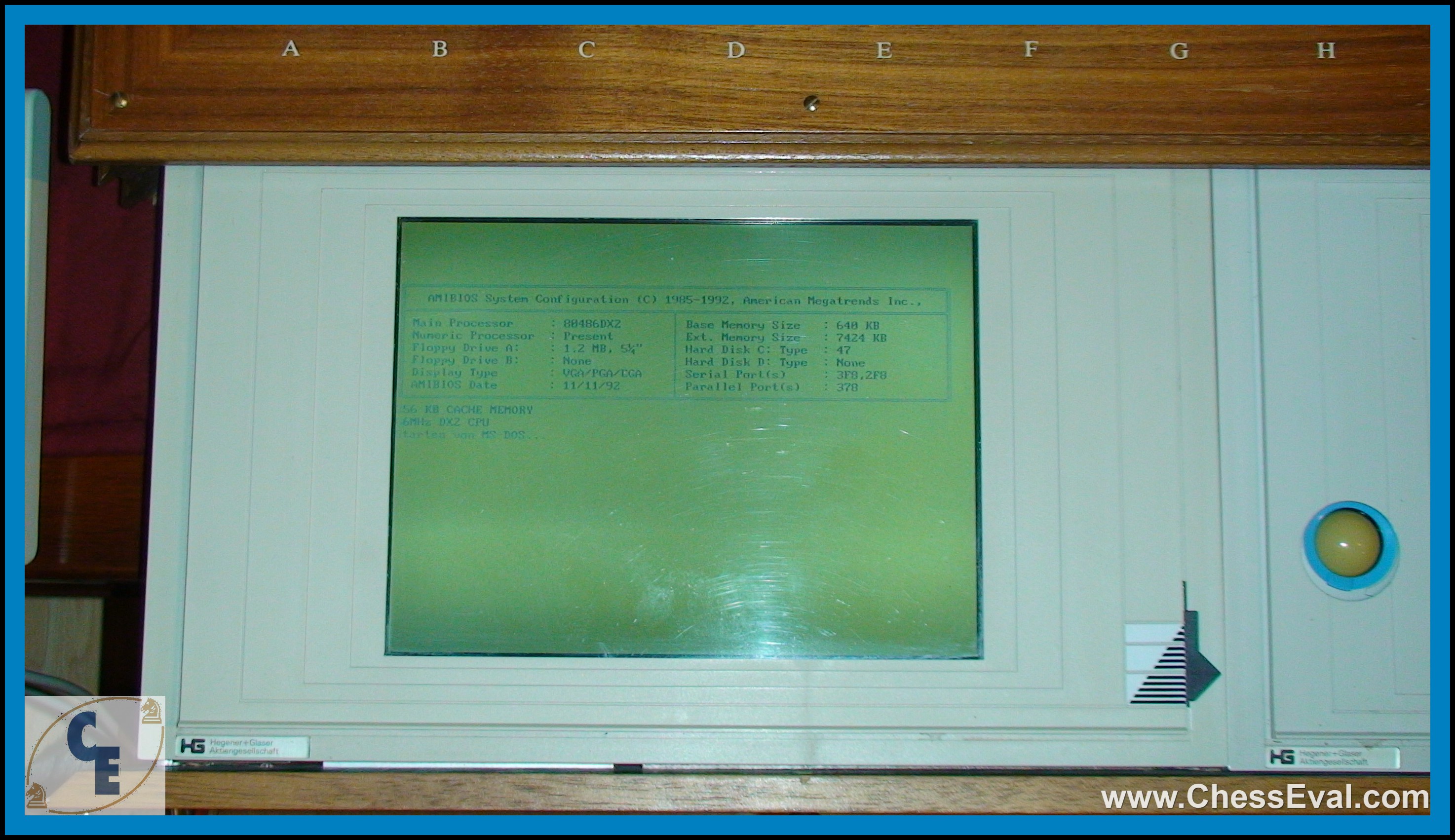

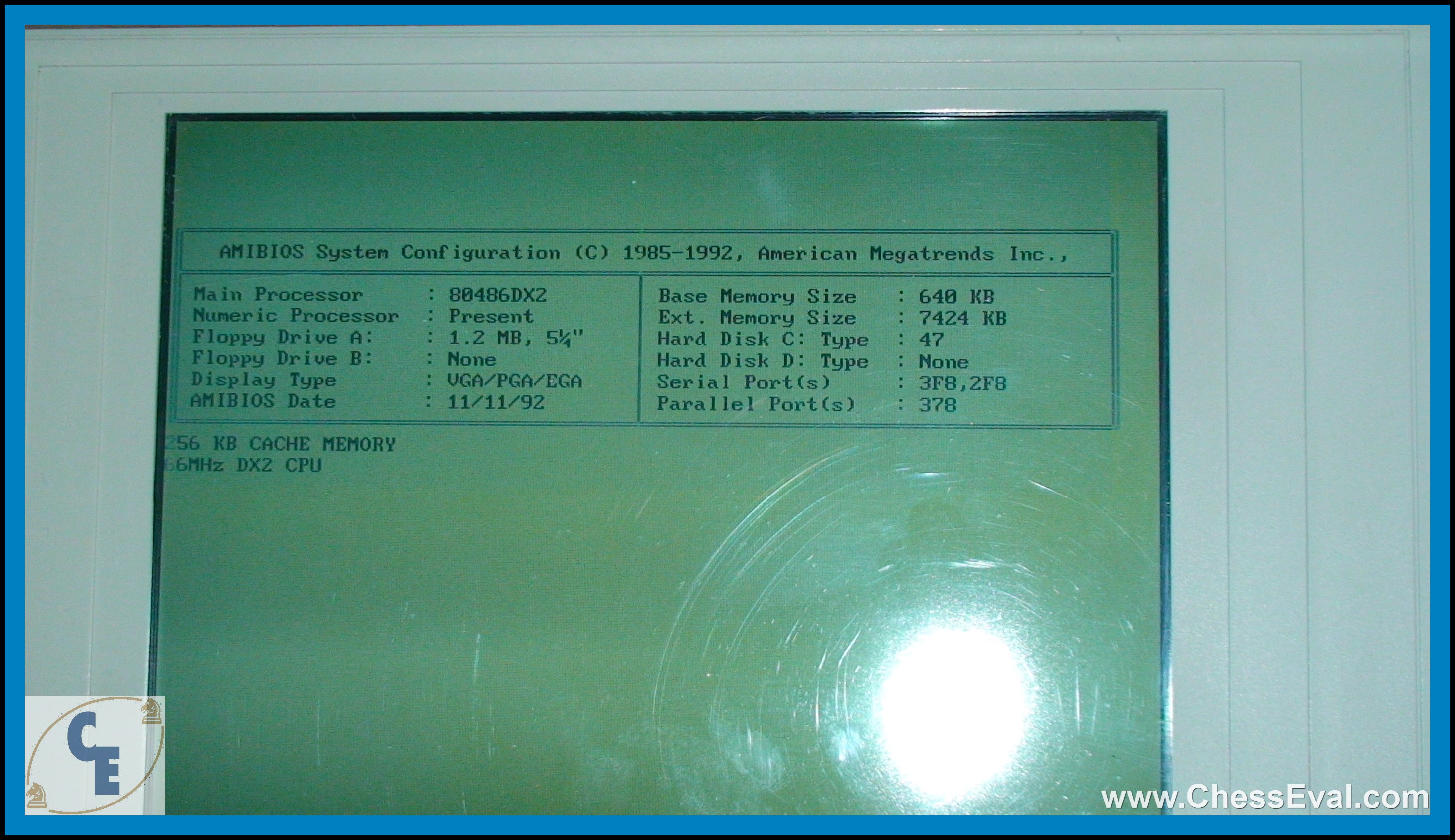

- Base Memory size: 640 KB
- External Memory size: 7424 KB

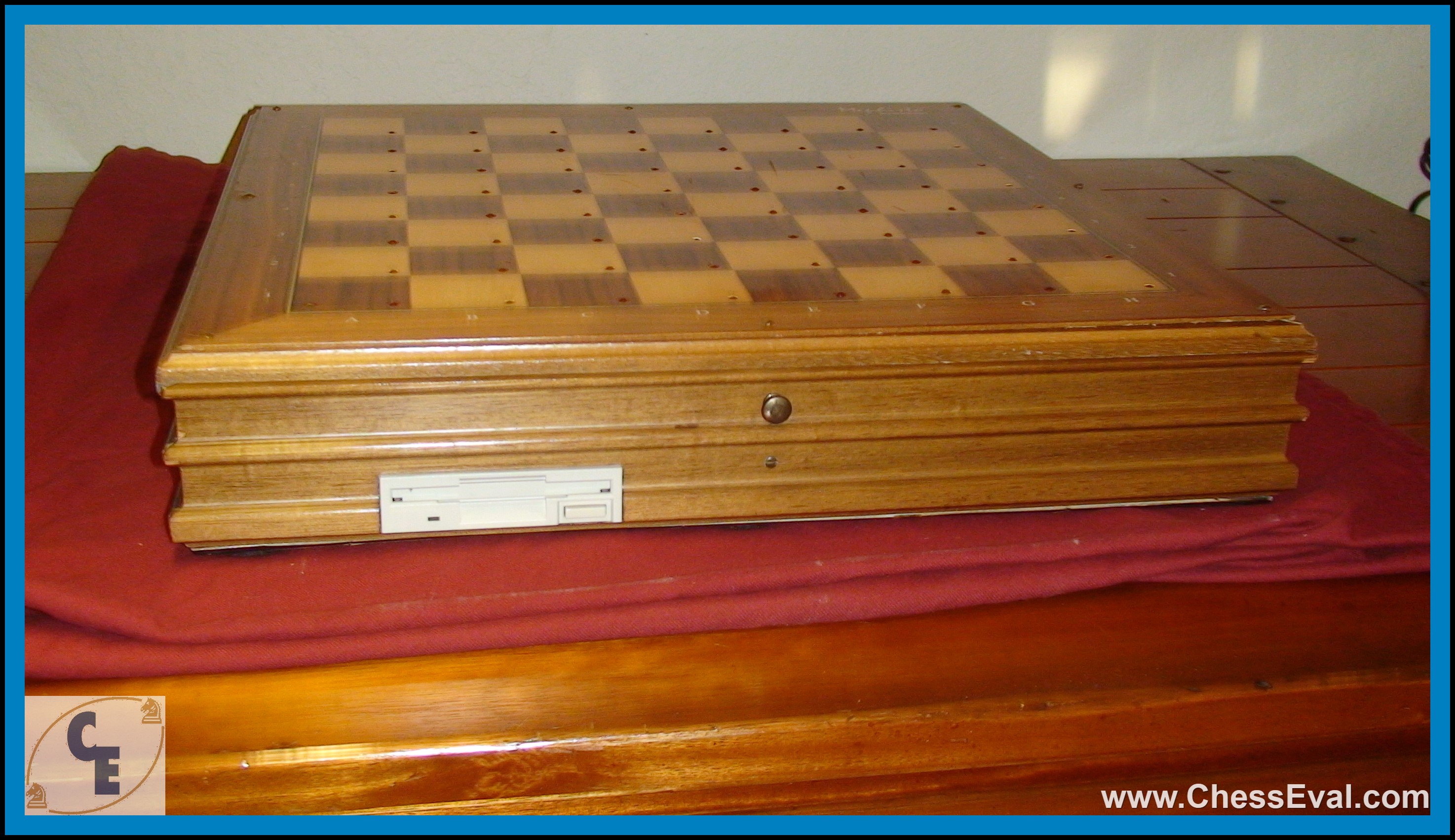

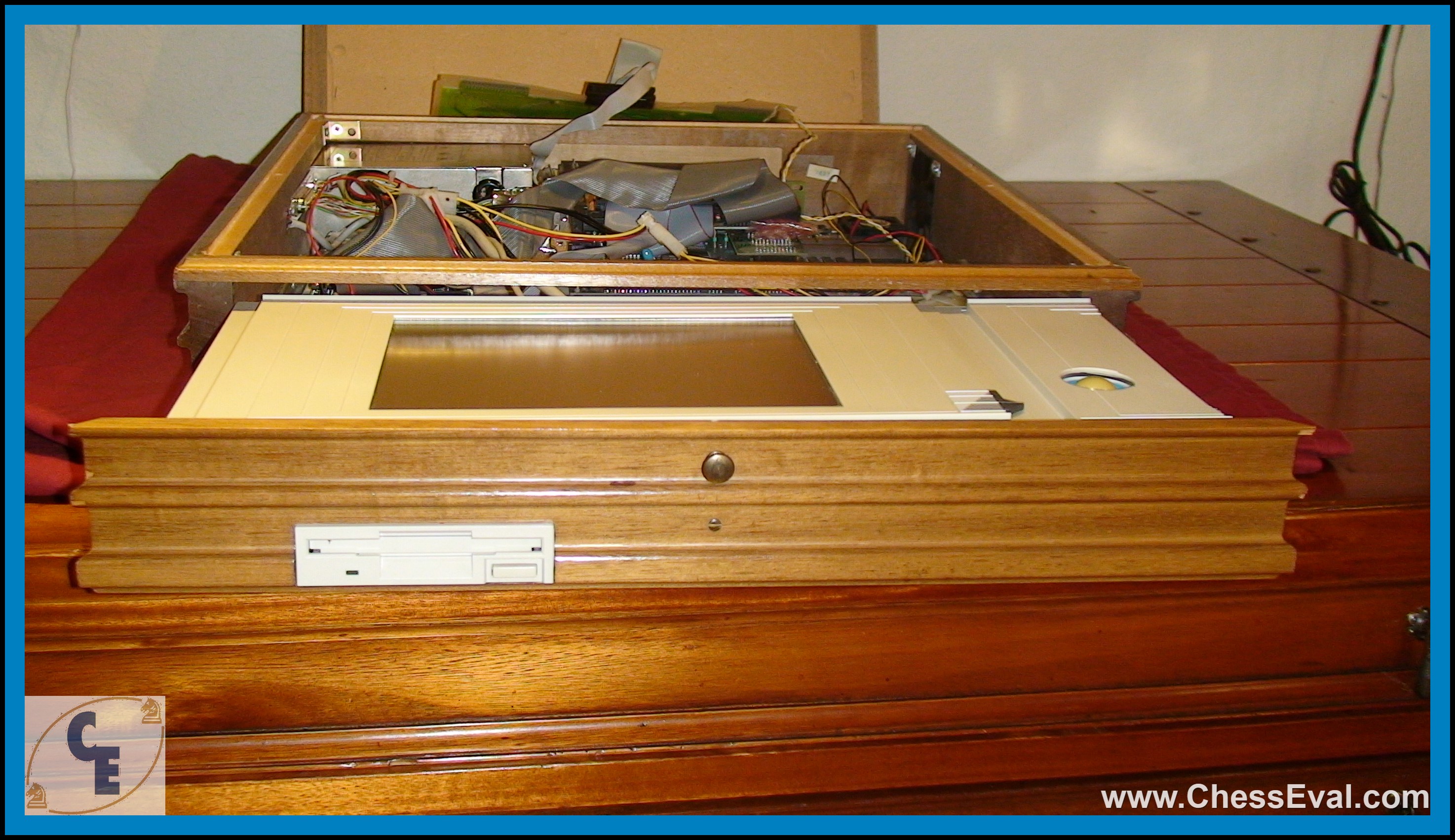

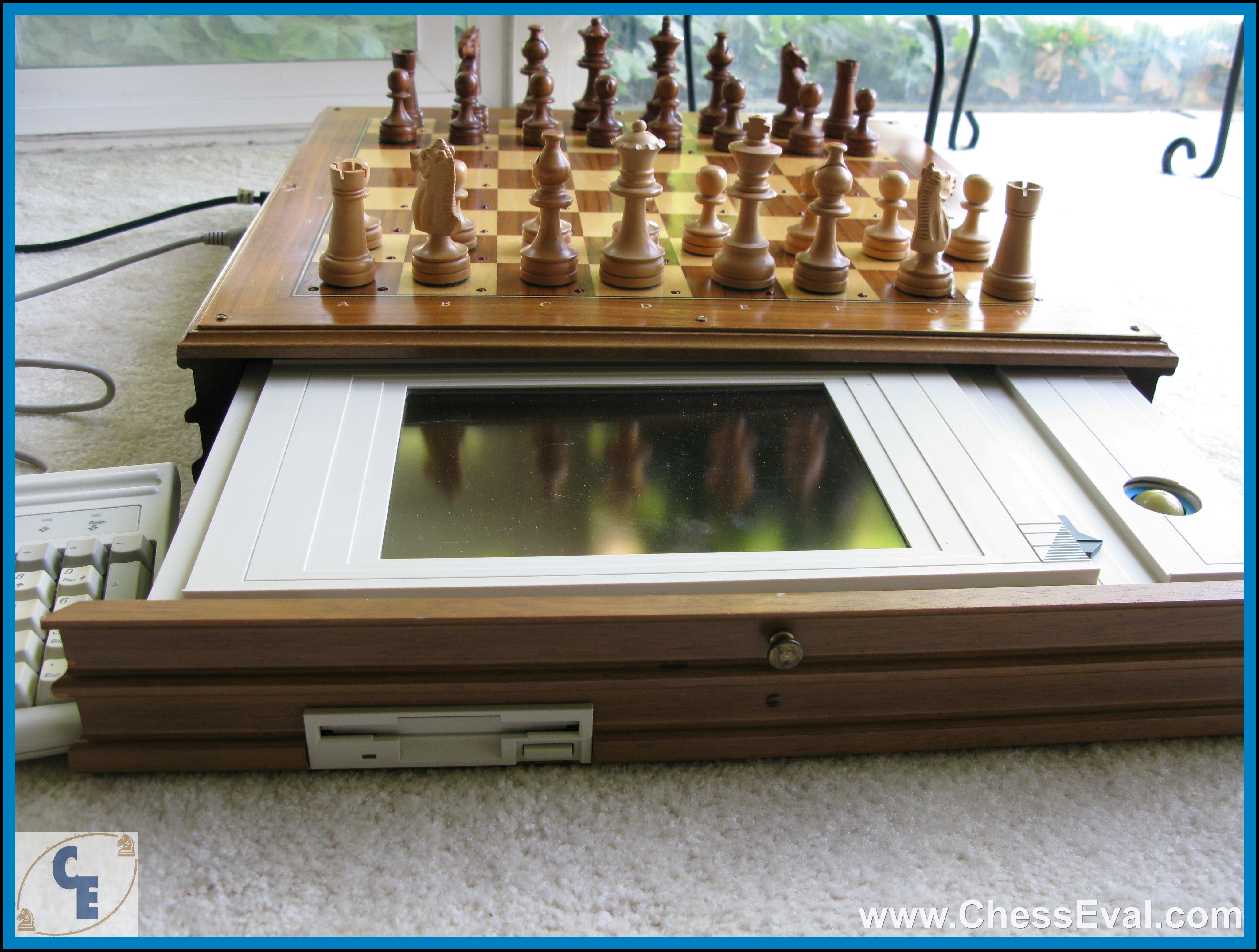

- floppy drive 1.2 MB, 5 1/4"
- 256 KB cache memory

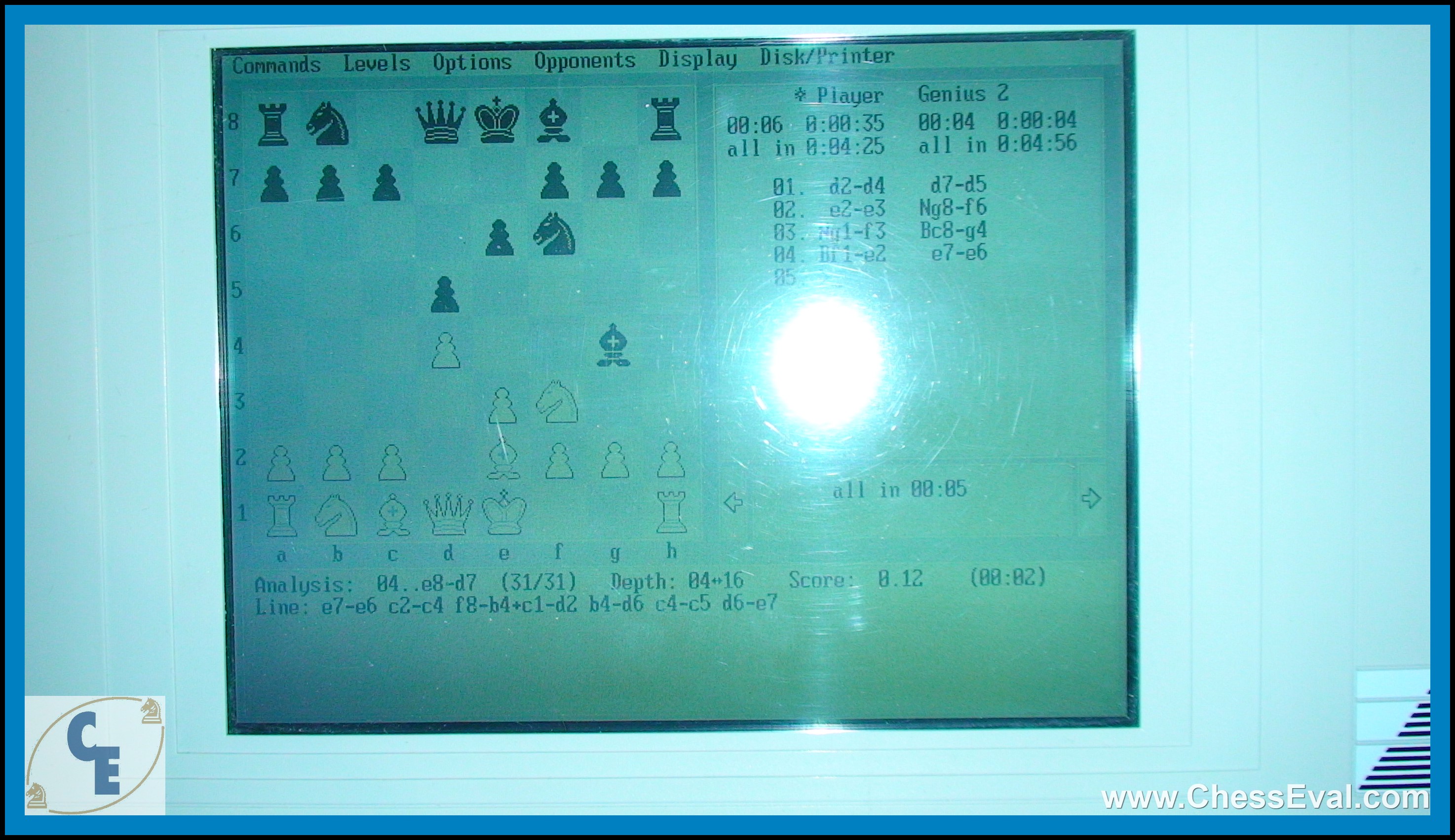

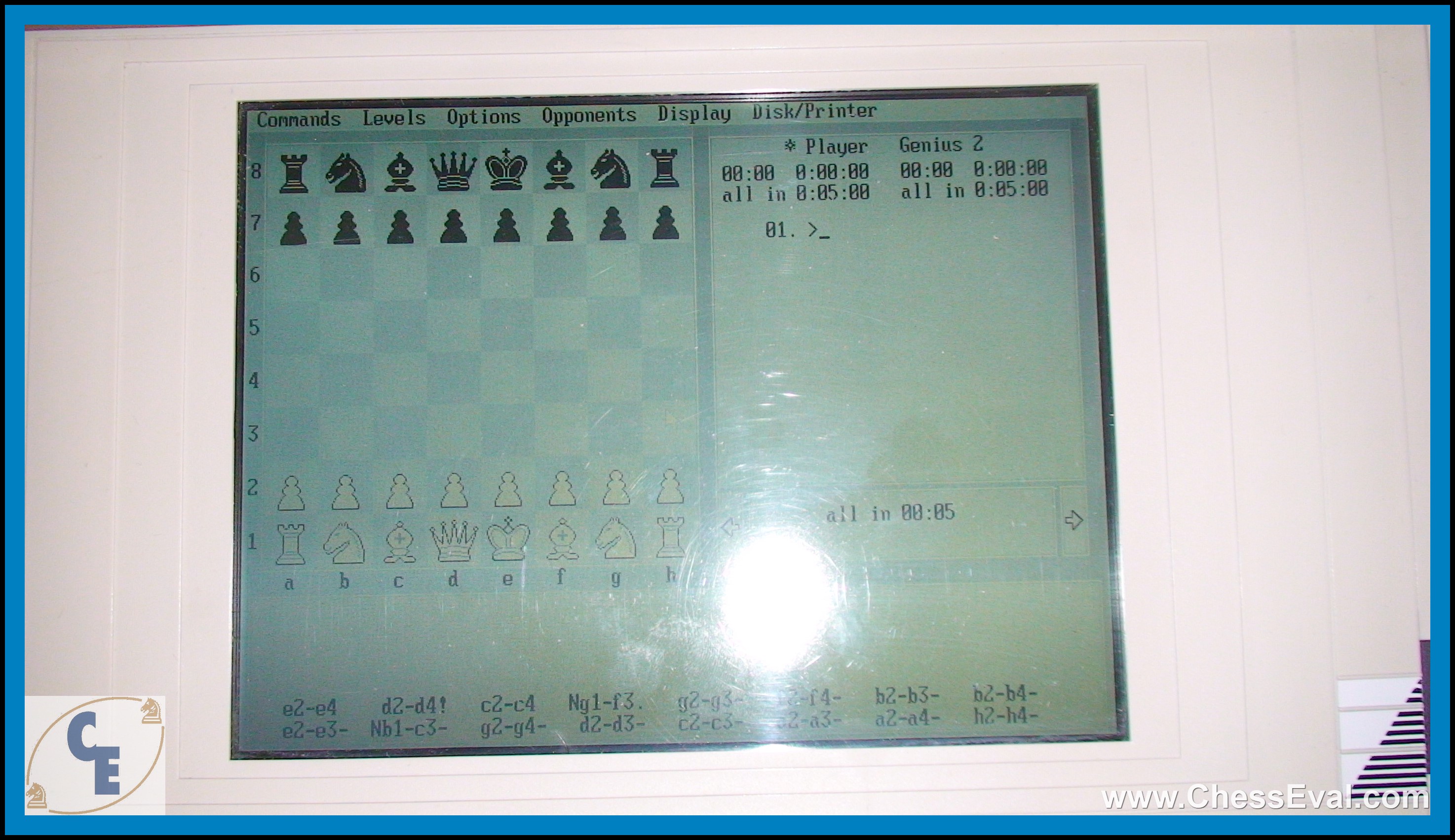

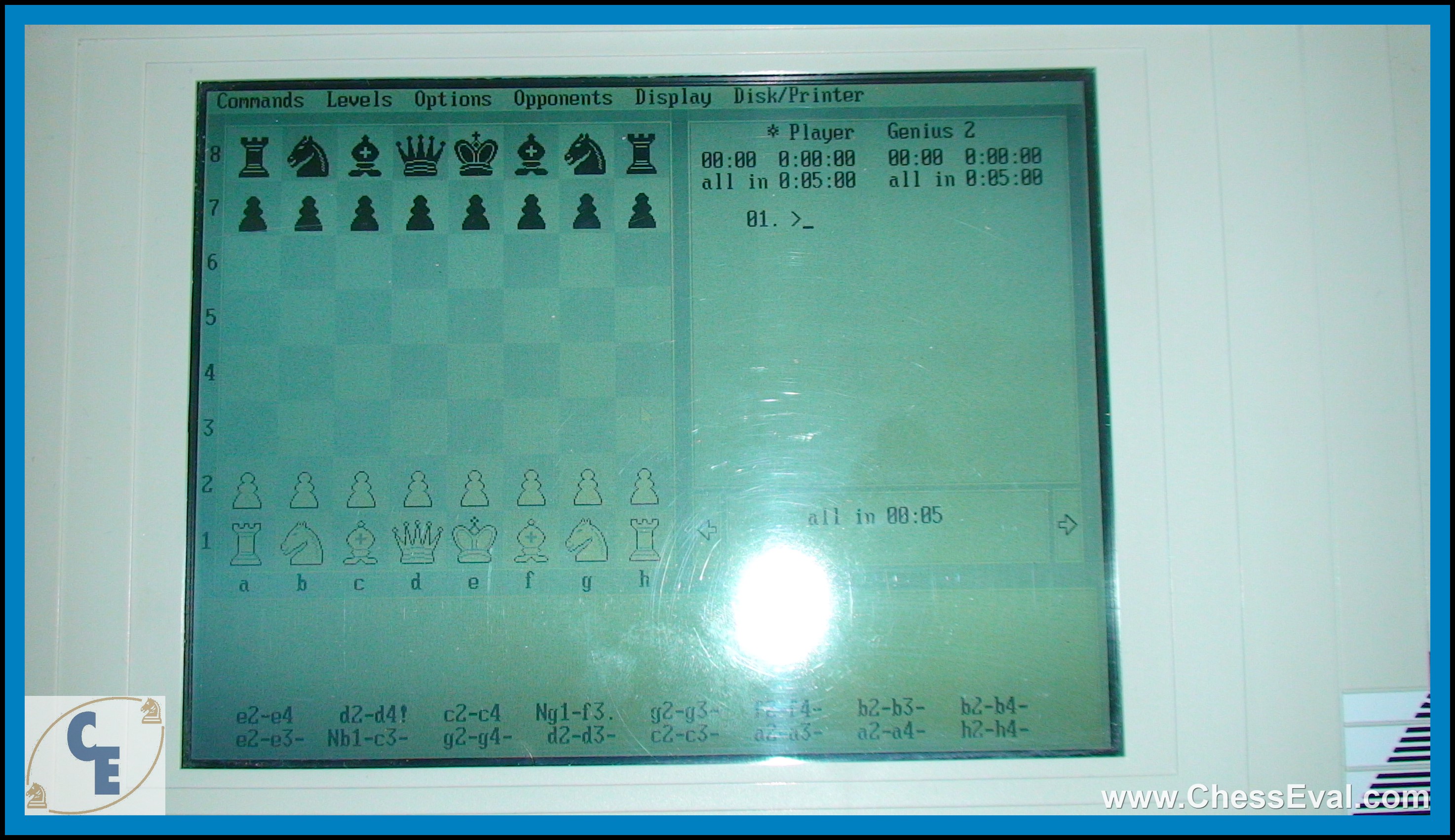

- program Genius 2 by Richard Lang

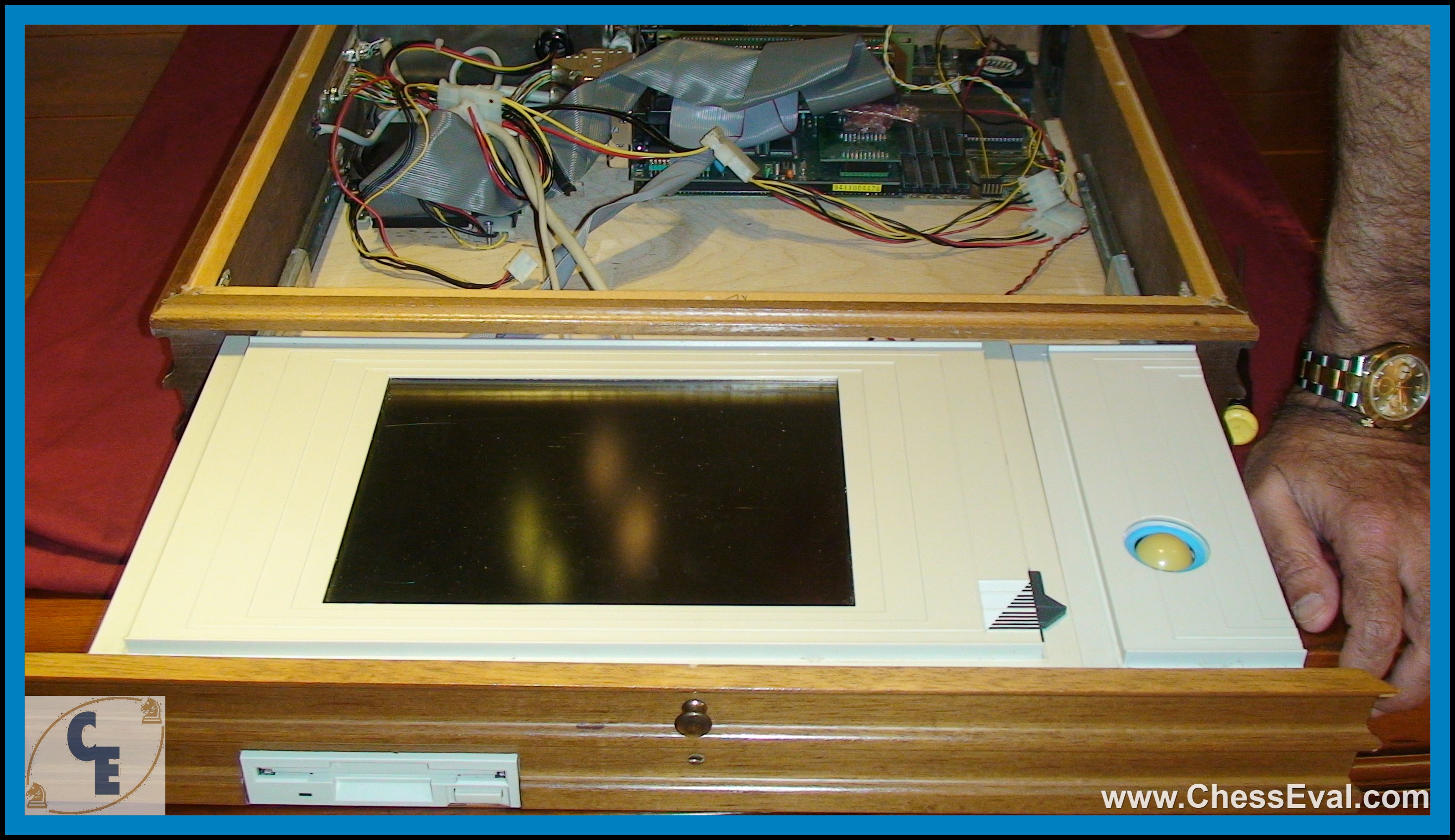

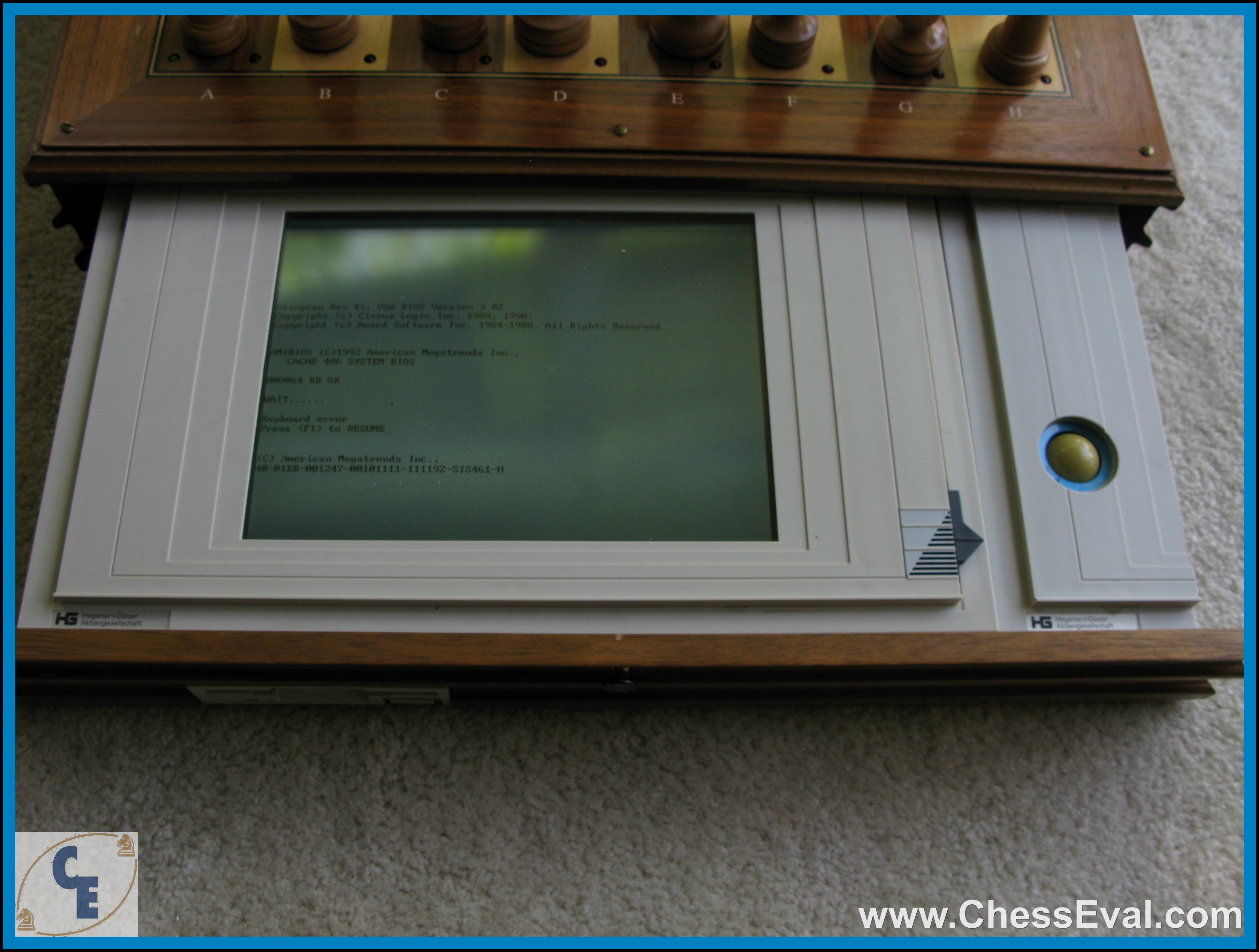

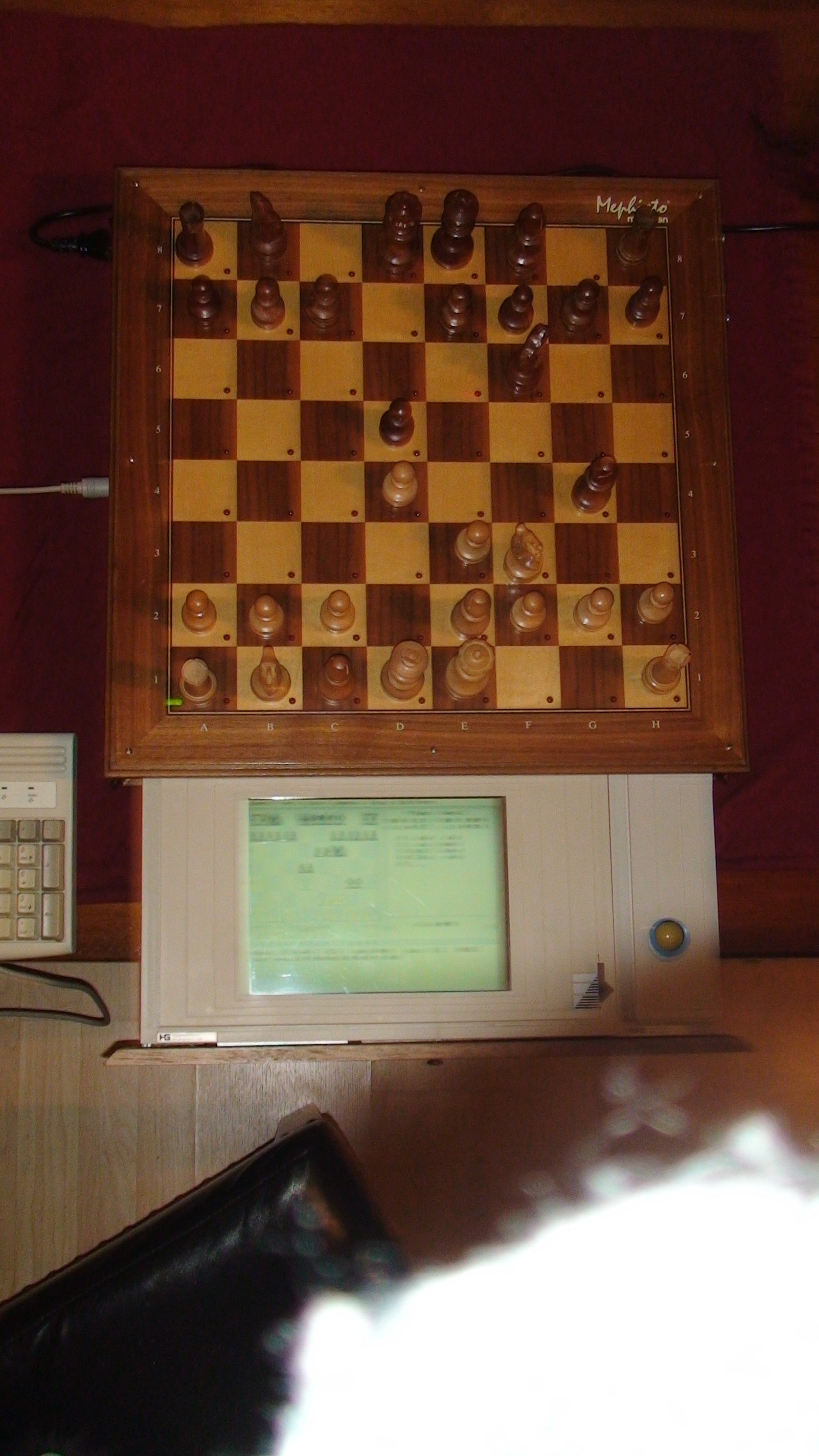

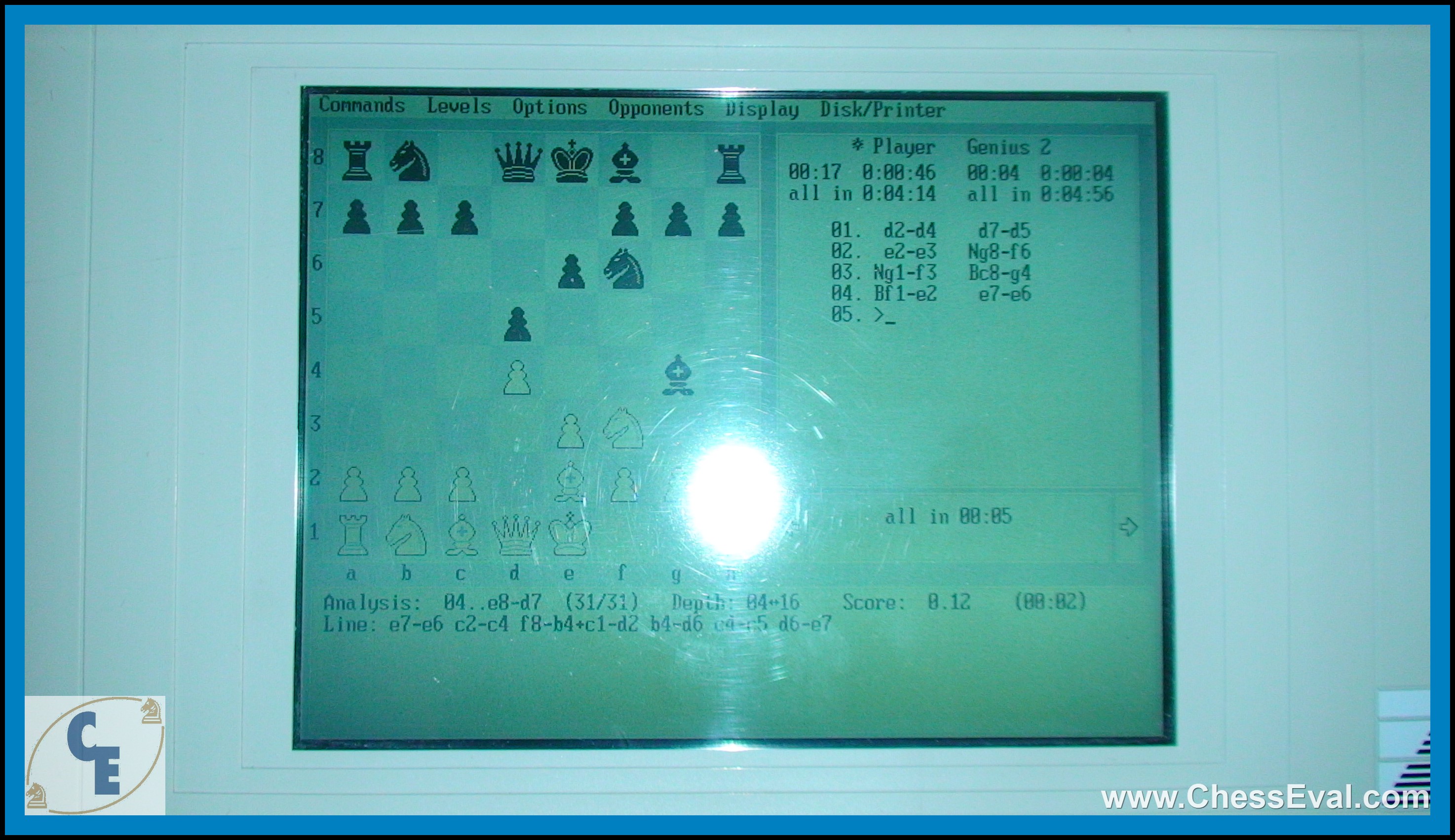

- touchscreen black and white, mouse trackball
- display type VGA/PGA/EGA

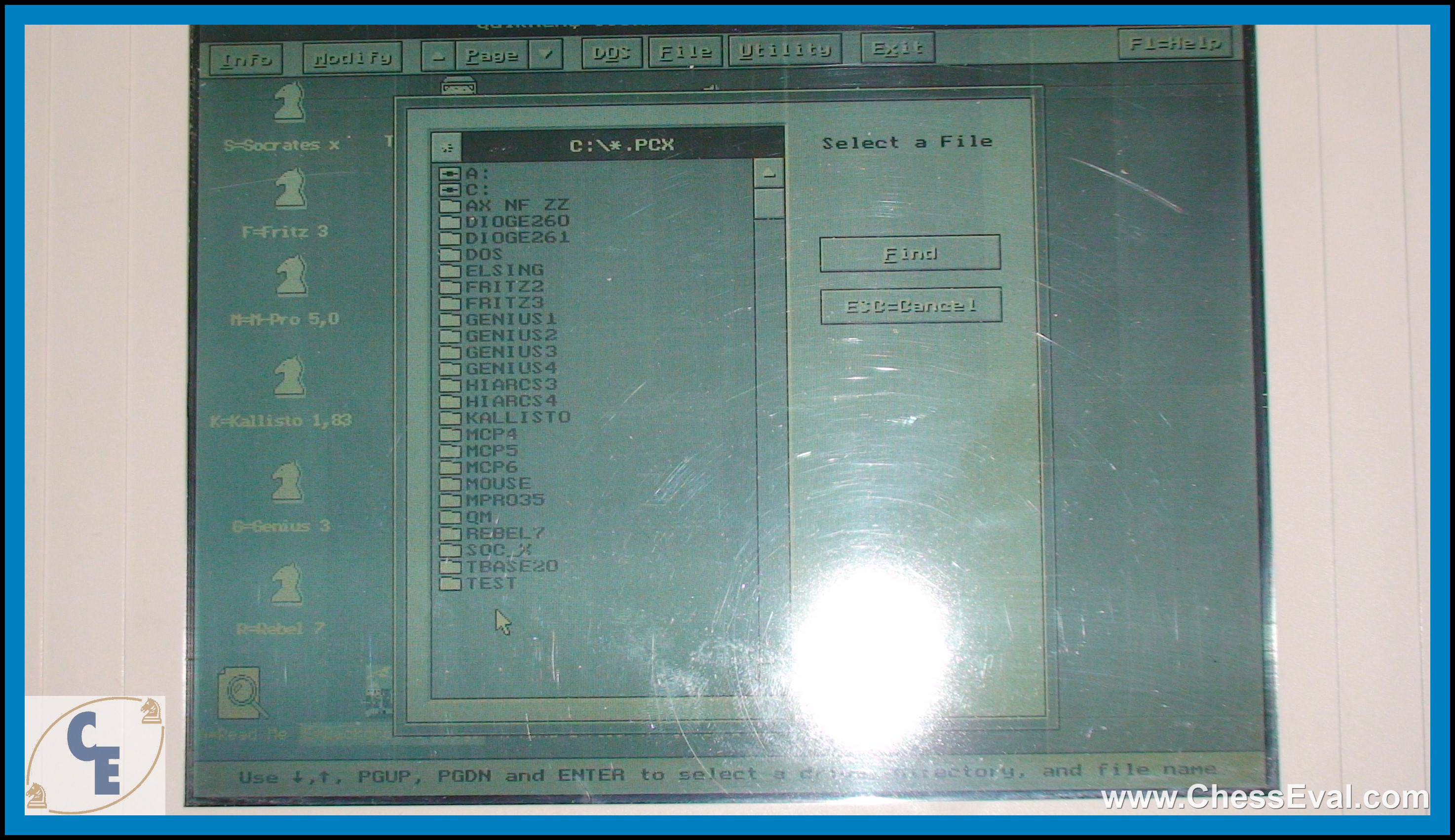

- hard drive with Genius 2 and Genius 3 (see photos below for a list of the program files present in the hard drive)

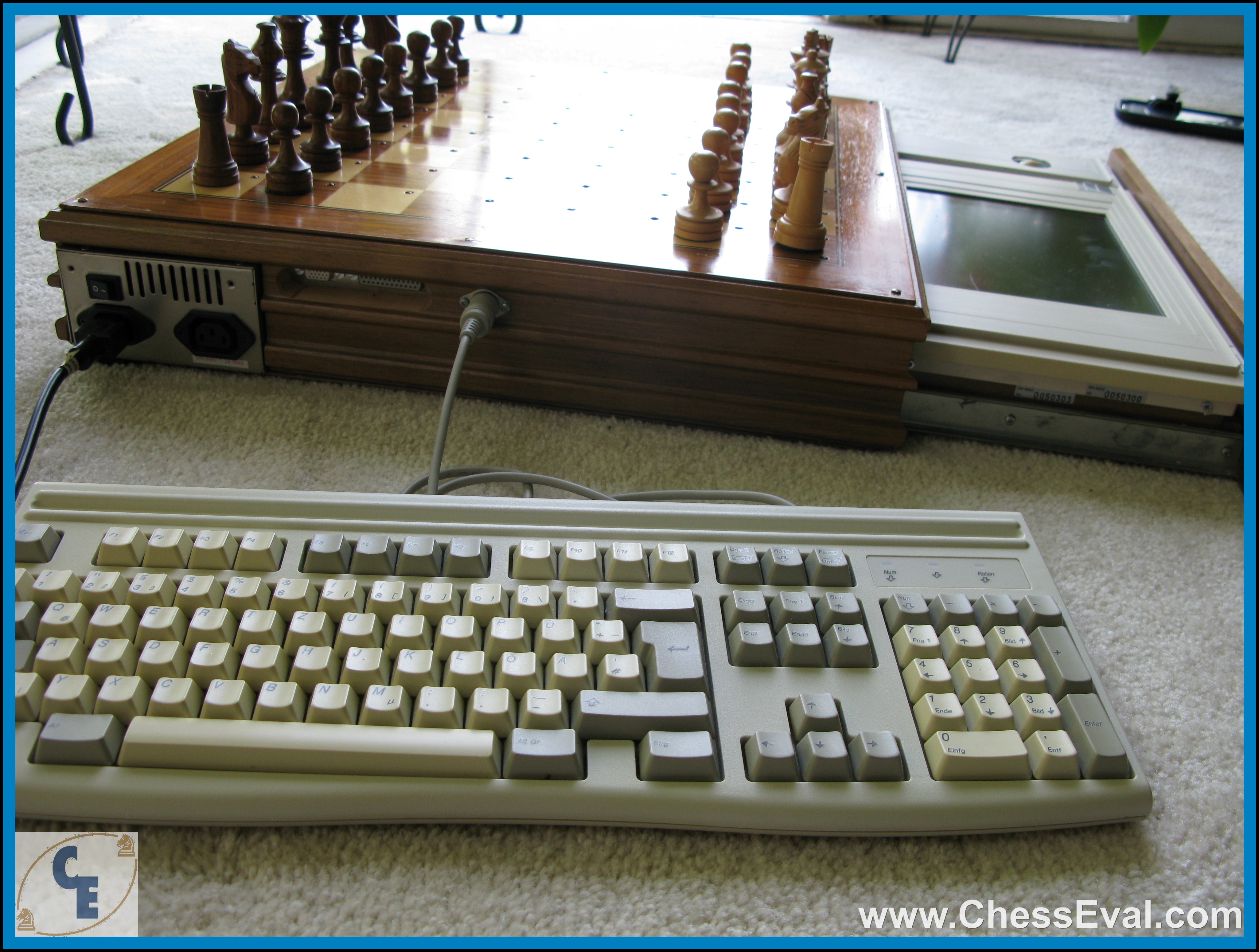

- one serial connector, one parallel and one video connector for a second monitor

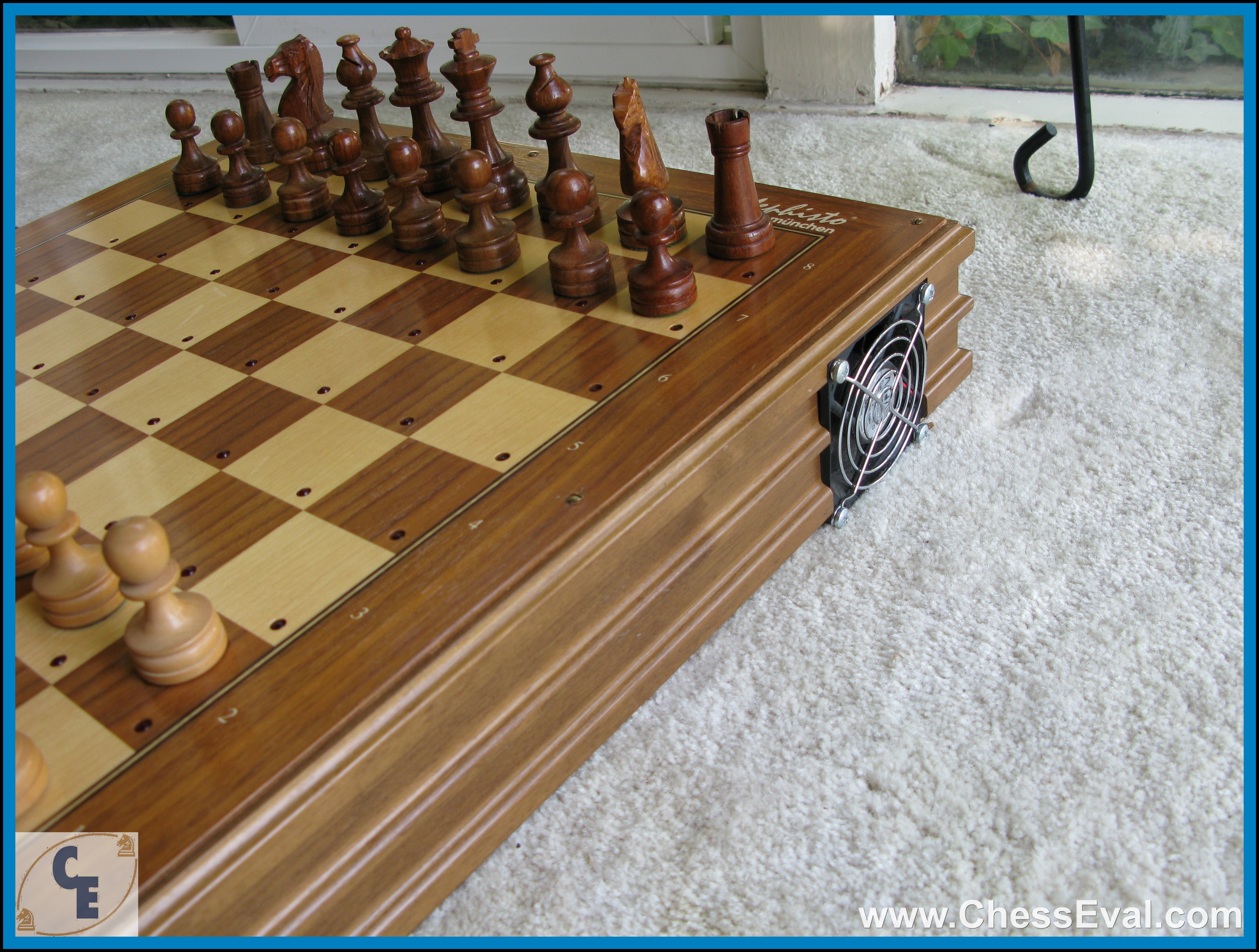

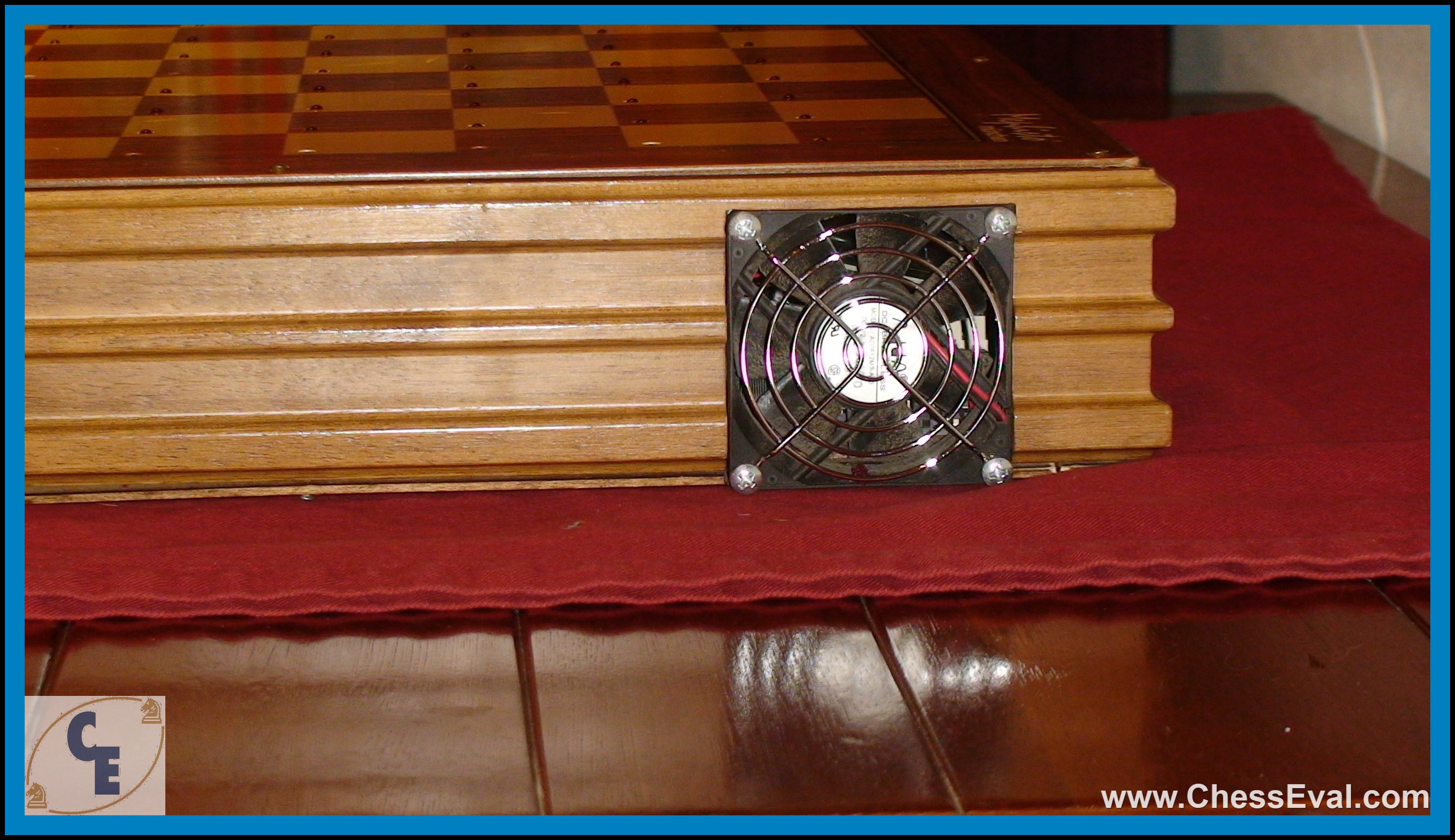

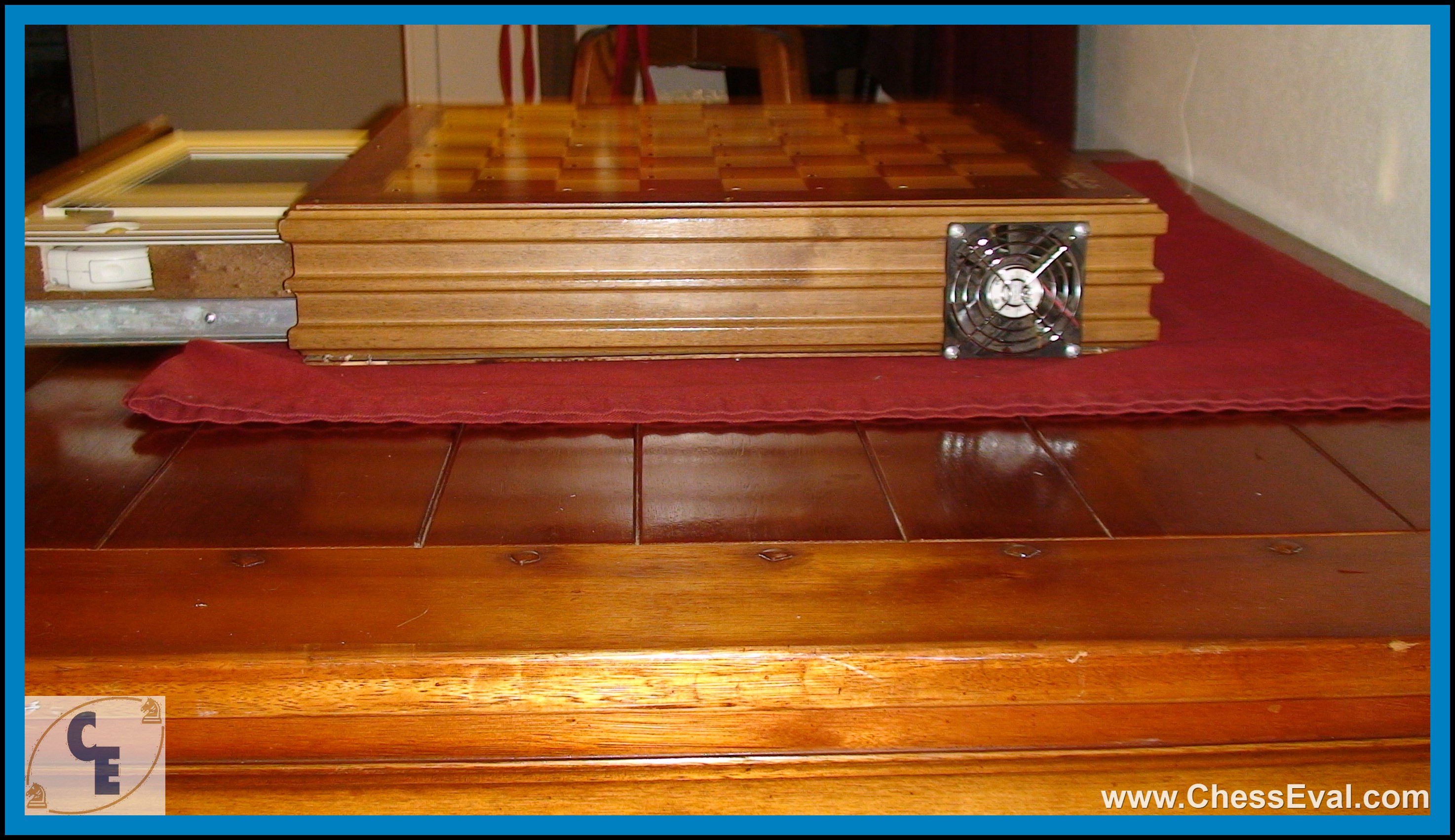

- one fan

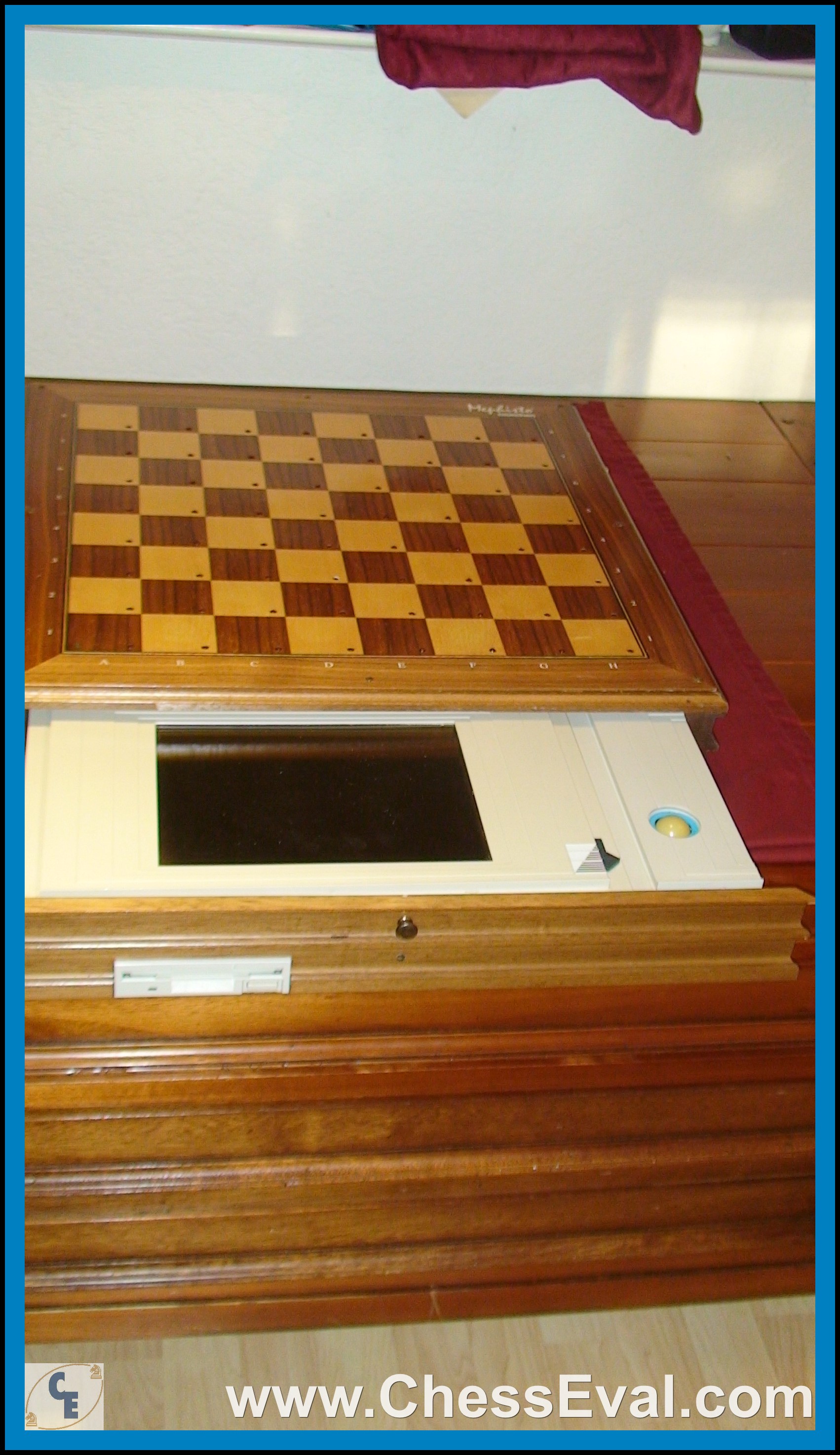

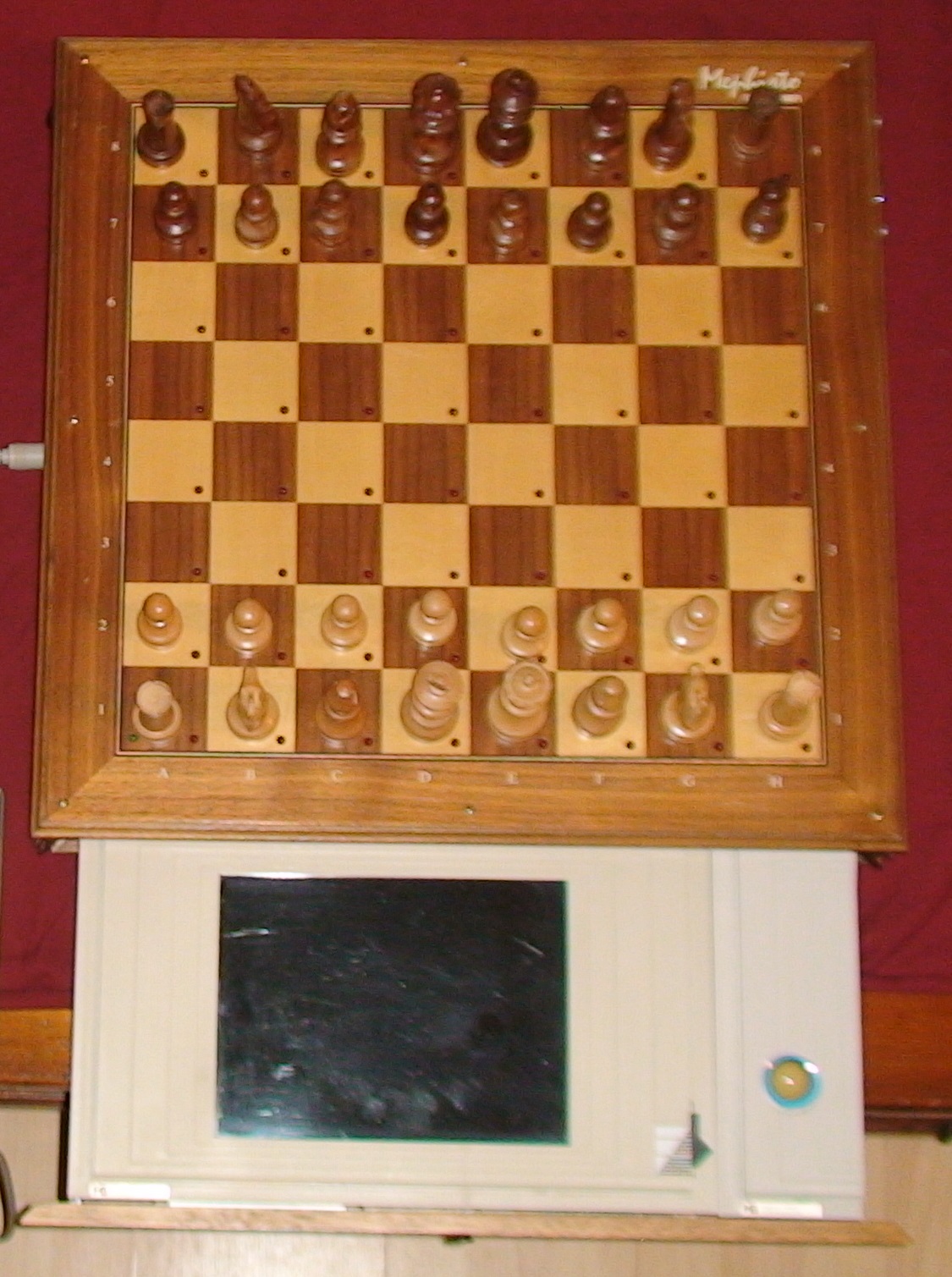

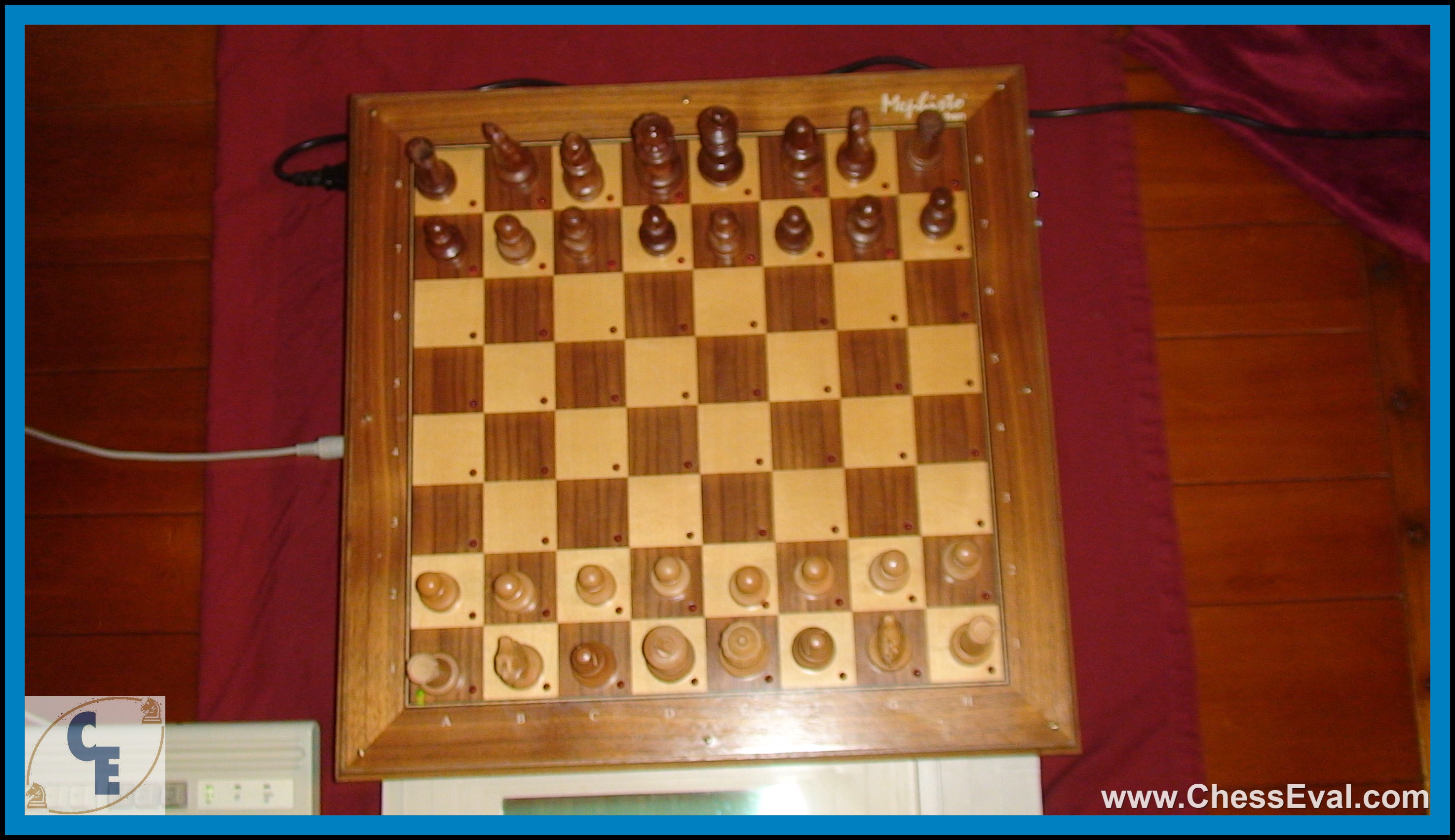

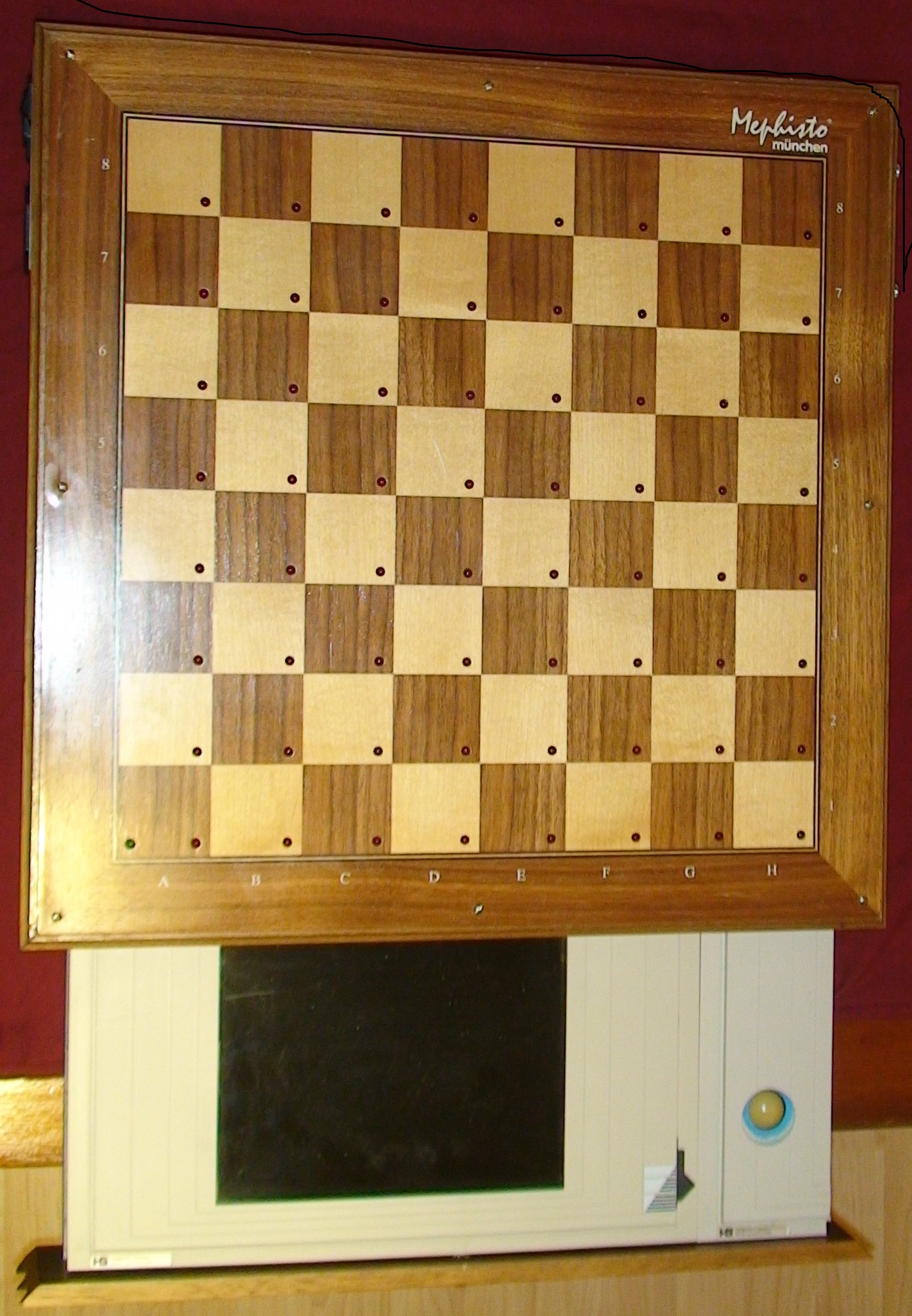

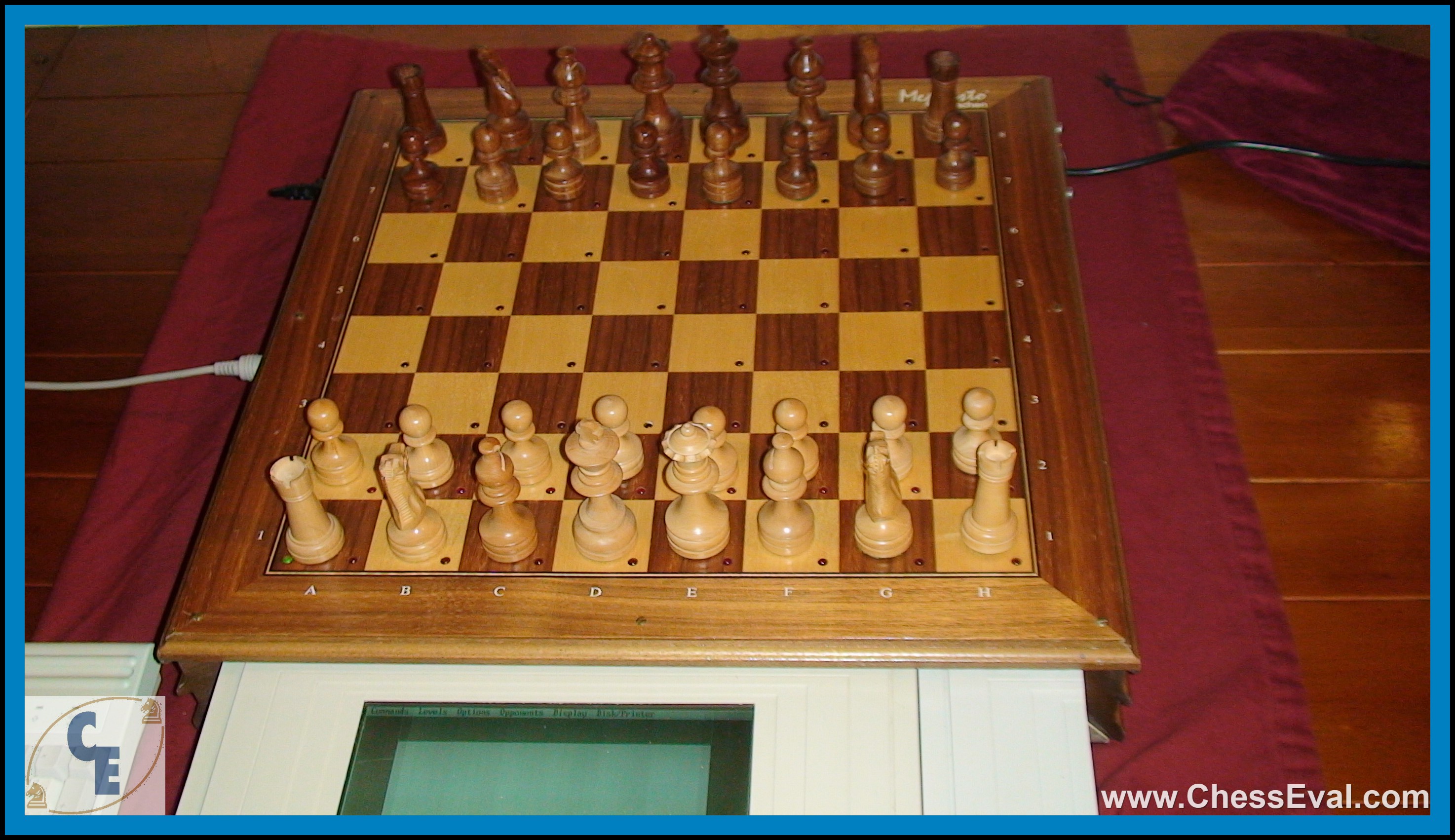

- board: Mephisto Munchen, 50x50x9.5 cm, 64 LEDs
- adapter: AC/DC 220 V

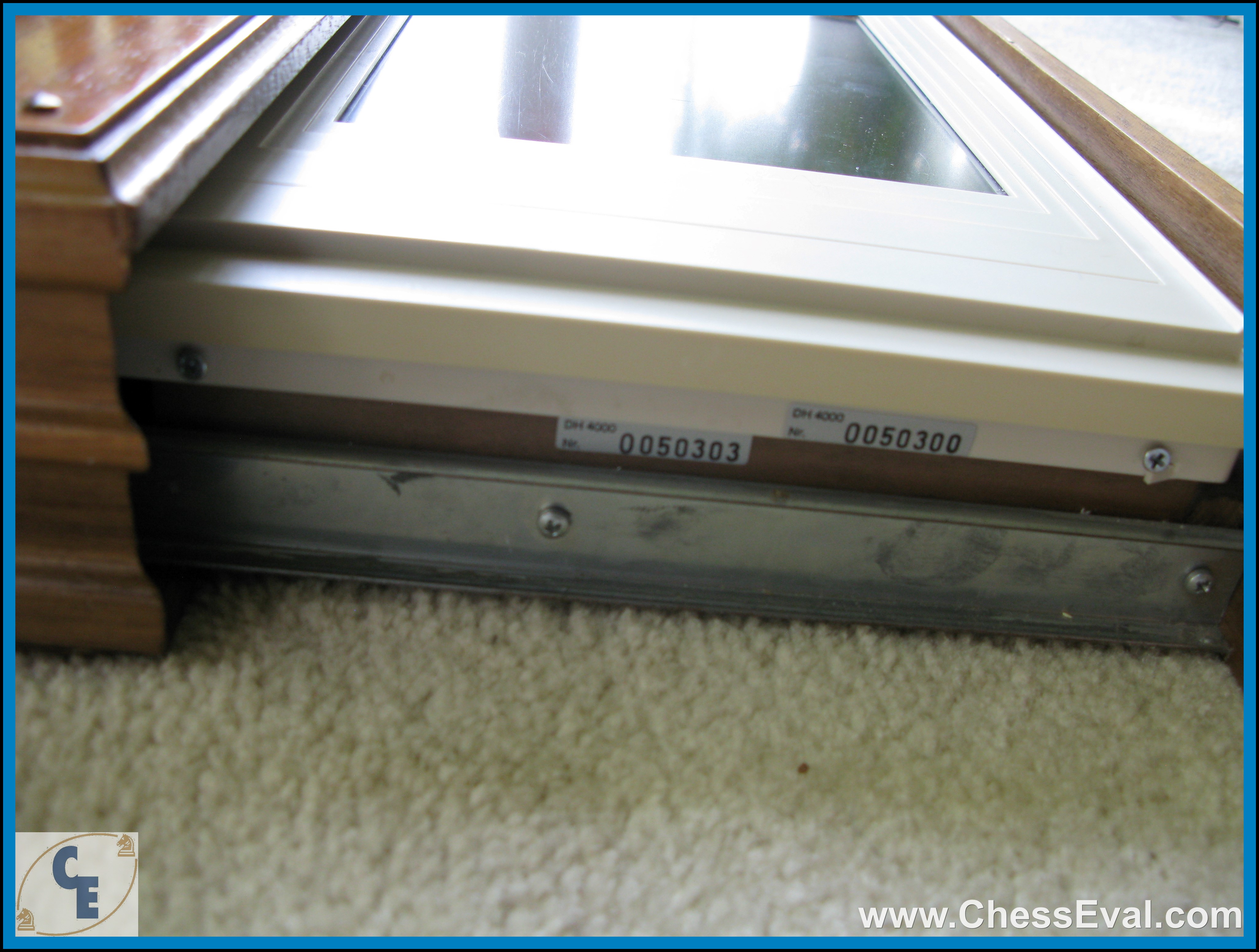

- Id Number: DH 4000 00503003 and DH 4000 0050300
Winners of the XII World Microcomputer Chess Championship
- World Chess Computer Manufacturers' Champion: Mephisto Genius 2
- World Microcomputer Chess Software Champion: Hiarcs
- Amateur World Champion: Hiarcs
- Absolute World Microcomputer Chess Champion: Mephisto Genius 2
